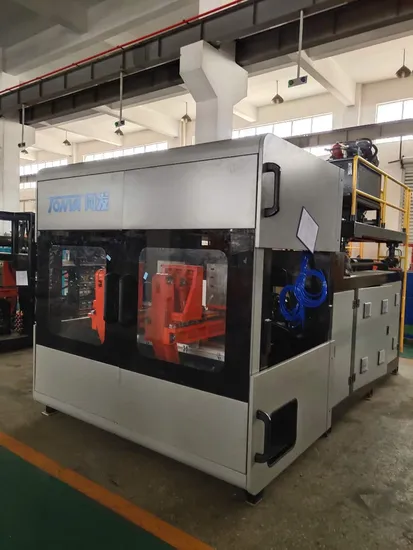

Medical Package Dropper Testing Tube Blow Molding Machine

Product Description

Double stations 4cavities(tube) Single layer Automatic trimming: Neck/Bottom Output: around 3000BPH Power supply: 380VAC 50HZ Water cooling: 20ºC (5HP Water chiller) Air source: 0.6Mpa, 0.6m³/min (1.2 m³/min Air compressor)

1	Unit	TVHD-1L
Raw Material	PE/PP/PA/PVC/PETG/ABS/PS/EVA/TPU etc
Machine Weight		2.3
Machine (L*W*H)	m	2.6x1.6x1.8
Extrusion System
Diameter of Screw	mm	55
Screw L/D ratio	L/D	23:1
Plasticizing Capacity	Kg/h	55
Heating Zones	pcs	4
Heating Power	kw	7
Screw Motor	kw	7.5
Die Head
Heating Zones	pcs	3
Heating Power	kw	1.5
Power Consumption
Air Pressure	Mpa	0.6
Air Consumption	m3/min	0.6
Cooling water	m3/h	0.6
Total Power	kw	14-16
Clamping System
Clamping Distance	m	150
Sliding Distance	mm	320
Open Stroke	mm	160-310
Mould Platen Size	mm	280x300
Clamping Force	kn	30
Working Condition
Piston Type Air Compressor	kw	7.5
Water Chiller	HP	3

Dear manager
hi,how are you?thanks read our products information, i feel honored.
our company establish at 1993,so have stably good experienced.manufactur from 0.1ml-5000L hollow products,so hope we can help you choose which type of machine you want.if you interesting,pls contact with me.i'm rita
sincerely
Zhejiang Tonva Plastics Machine Co.,LTD.

Website:tonva-machine.en.made-in-china.com
Add:No.30,Huihai Road,Binggang Industrial Zone,Shamen,Yuhuan,Zhejiang,P.R.China.

---
