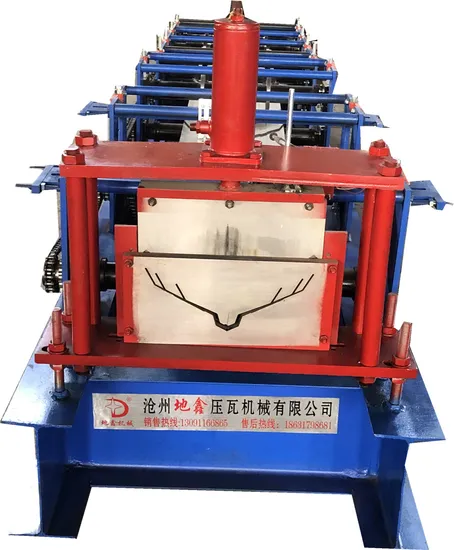

288 mm Ridge Cap Roofing Ridge Tile Making Machinery

Product Description

Cangzhou Dixin Roll Forming Machine Co.,Ltd which has 8 years export experience, we ever sold machines all over the world, such as: US, UK, Canada, Russia, Italy, Brazil, Azerbaijan, Greece...
Machine parameters of roll forming machine

Technical parameter
Item	Specification
Raw Material	Pre-painted steel coil & galvanized coils
	0.3-0.8
	235-550
Roller material	45# steel , coated with Chrome
Shaft for rollers	shaft with 75mm,processed with cylindrical grinder
Forming speed(m/min)	About 6-8
Output speed(m/min)	About 12 for 6m length sheet
Speed adjusting mode	Mitsubishi frequency transformer
Roller drive	Decelerating motor + Chain drive
Cutting mode	automatic hydraulic cut to length
Cutter material	Cr12 mould steel
Length measurement	Nemicon Encoder
Control mode	Mitsubishi PLC
Operating mode	Button + Mitsubishi Touch screen
Main motor power(kw)	4KW
Total power(kw)	8 KW
Process flow Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table
Components of machine
Decoiler (manual decoiler and hydraulic decoiler for option)	1set
Feeding & guiding device	1set
Main roll forming machine	1set
Hydraulic cutting system	1set
Controlling system	1set
Run out table (auto. Stacker for option)	1set

Other spec.
1. Size: about 6*1.5*1.5m (L*W*H)
2. Weight: About 2.5 ton
3. Decoiler Max. Capacity: 5000kgs
4. Hydraulic station power: About 4Kw (Depend on final design)
5. Cutting length: Cut-to-length
Packing:
1. One 20feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.

Delivery: about 30 days.
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.
Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers` trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.
Warmly welcome to China to visit our factory and select the machines you need. Our address, Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China
Where is your factory located ? How can I visit you ?
Dixin Roll forming machinery is located at Industrial Zone of Botou , Hebei Province of China. Welcome to visit us by:

1.Fly to BEIJING or TIANJIN Airport, then take high speed train from BEIJING NAN to CANGZHOU XI, about 1 hour, I will pick up you there.
2.Fly to SHANGHAI Airport, then take high speed train from SHANGHAI HONGQIAO to CANGZHOUXI, about 4.5 hour,I will pick up you there.
FQA
Q: Are you manufacturer?
A: Yes, we are manufacturer and trading company.
Q1. What's your delivery time?
A1:Depending on the type of machine, duration of 1.25 days to 60 days from the date of order.
Q2. Do you have after-sales support?
A2:Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
Q3. Do you sell only standard machines?
A3:No, most of our machines are built according to customers specifications,using top brand components.
Q4. What will you do if the machine is broken?
A4:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5:Yes,please tell me the destination port or address.we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
If you want to get more information about our equipment ,
Please feel free contact Nancy

---
