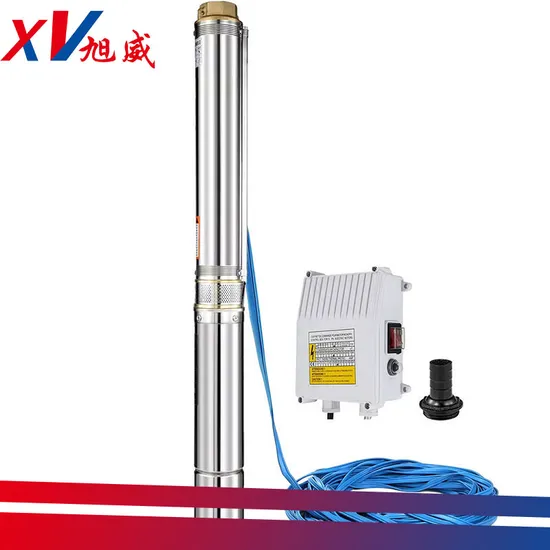

Durable Solar Deep Well Pumps for Garden Irrigation Solutions

Product Description

Model NO.	100dgs15	After-sales Service	Online Support,
Warranty	1 Year	Max.Head	>400m
Max.Capacity	>400 L/min	Driving Type	Solar
Material	Stainless Steel	Structure	Multistage Pump
Assembly	Liquid Pumps	Power	Solar Energy
Start Up	Motor	Application	Clarified Water Pump
Industry	Food pump	Media	Stainless Steel
Performance	Solar Water Pump	Outlet	Brass
Wire Winding	100% Copper Wire	Cable	Can Be Customized
Connector	Brass	Trademark	XuWei
Transport Package	Wooden Box	Specification	150.00cm * 5cm * 5.00cm
Origin	China	HS Code	8413604090

135 degree thermal protector: high efficiency; be stopped automatically; avoid to burning when overloaded or other abnormal operation 600# Cold Rolled Silicon Steel Sheet: better quality than normal material; longer using life; higher efficiency; enough power High efficiency bearing: silencing; smoothly moving; abrasive resistance; ultra-high hardness; long service life Stainless steel rotor: SS 304 welding; high quality; high performance; stable operation High quality float impeller: Enhanced ABS; High strength PC composite polymer material; more resistant and durable Sand prevention ring: the impeller use ABS material, which is stronger than pom material. Our impeller have the patent for the sand prevention structure, which can prolong the life of the impeller, improve the pump efficiency Food machinery oil: use the food machinery oil which can protect the water out of pollution when the oil leaking happens. Mechnical seal: use carbon graphite and silicon carbide mechnical seal, wear-resisting, longer life Cable: selected the special cable which can use in the temperature from -40 degree to 80 degree Thicker thickness of pump casing and motor casing Screw: all the pump screw use 304 stainless steel, compared with the normal screw, no rust, no broken Linyi HS Code 8413604090 Product Description
Mechnical seal: use carbon graphite and silicon carbide mechnical seal, wear-resisting, longer life Cable: selected the special cable which can use in the temperature from -40 degree to 80 degree Thicker thickness of pump casing and motor casing Screw: all the pump screw use 304 stainless steel, compared with the normal screw, no rust, no broke Product Parameters
Other products of the same mode

Model

Maximum Flow Rate (T)

Max. Head (m)

AC Voltage (V)

"Water pump height (mm"

"Pump weight (KG)"

DC Optimum Voltage (V)

DC Max Voltage (V)

Power (kw)

Outlet diameter (inch)

100DGS15-31/2-2.2-A/D	27	46	220	608	9.5	300-400	<430	2.2	2
	27	46	380	608	9.5	520-750	<780	2.2	2
100DGS15-49/3-3-A/D	27	70	380	688	11.1	520-750	<780	3	2
100DGS15-77/4-4-A/D	27	117	380	821	12.9	520-750	<780	4	2
100DGS15-105/6-5.5-A/D	27	145	380	993	17.0	520-750	<780	5.5	2
100DGS15-160/9-7.5-A/D	27	219	380	1219	20.7	520-750	<780	7.5	2
100DGS15-180/10-11-A/D	27	248	380	1309	22.3	520-750	<780	11	2
100DGS15-197/11-13-A/D	27	279	380	1428	25.3	520-750	<780	13	2
100DGS15-245/14-15-A/D	27	350	380	1645	28.8	520-750	<780	15	2
100DGS15-302/17-18.5-A/D	27	426	380	1873	32.3	520-750	<780	18.5	2

Company Profile
About the company MengyinxuweiMachinery is a professional company engaged in research, development, production, sales,application and service of air compressors and rock drill machines. The products are widely used in industry compressed air supply, mining and construction projects. With technology development as the heart of company philosophy,Zhigao follows the guidelines of " detail oriented, high efficiency, quality first and creating future" and the business philosophy of " Constant science and technology innovations ". Zhigao is eyeing the global market and with confidence to strive to be world-class to provide excellent products and services to customers. FAQ 1. Are you a trading company or a manufacturer?
We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.2.How to inspect the goods?1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.3.How long is your delivery cycle?1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 25-30 days.4. What's your terms of payment? T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

---
