Basic Info.
Application Field
Agriculture, Livestock, Aquaculture, Forestry
Farming Policy
Dry Cultivating Machinery
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Semi Hanging
Arbor Configuration
Vertical Shaft
Transport Package
Steel Frame
Specification
3300mm L*1500mm W*1850mm H
Production Capacity
6000/Year
Product Description
LIFTOR Cheap Price Farm agriculture mini wheel used tractors 60hp 70hp 80hp
This series tractor is a versatile, high horsepower agricultural tractors. The model has compact structure, convenient operation, flexible steering, traction, versatile and easy maintenance characteristics. The series use TB chassis, four wheel drive, 12F+12R shuttle shifts gear box, hydraulic steering, double stage clutch and the 3-point linkage is adjustable by floating way. The series can choose to equip the roll bar, hydraulic multi-valves, heater cabin.
Sales territory: regions like Europe, South America and Australia, Africa and other areas
Matched machines and tools: ploughing tools like disc plough, disc harrow, rotary tiller and cultivator. Optional tools like front loader, backhoe, trailer, mower, rake, spraying machine
LIFTOR Tractor Features:
1. LIFTOR series tractor is designed for multiple light works, such as farming, transportation etc.
2. Equipped with Chinese famous diesel engine, It has the advantage of high cost efficiency and fuel efficiency, low maintenance cost and good working performance.
3. Using central console and mature structure, the tractor is easy to control and maintain.
4. 8F+2R gearbox with easy operation and convenient maintenance;
5. Optional single/double action clutches for different needs and operation;
6. Optional Herringbone tires, paddy tires or other type of tires to meet your needs of working conditions.
7. Hydraulic power steering(4WD) makes it easy to control and reduce the labor strength of operator.
Tractor Parameter:
TB SERIES TRACTOR(60hp-80hp)
|
Product model
| HX704(70hp)
| HX754(75hp)
| HX804(80hp)
|
Wheel drive
| 4×4
|
Dimension(L*W*H)
| 3900*1700*2500mm
|
Weight
| 2700kg
|
Front wheel tread
| 1300-1400mm
|
Rear wheel tread
| 1400-1500mm
|
Wheel base
| 2072mm
|
Min land clearence
| 410mm
|
Gear shifts
| 12F+12R
|
Tire size
| Standard tire:8.3-20/12.4-28 bigger tire: 8.3-24/14.9-28
|
Steering gear
| Hydraulic steering
|
Rear suspension
| Three point suspension
|
ENGINE SPECIFICATION
|
Engine model
| Quanchai or YTO
|
Engine type
| Water cooled, vertical, 4 stroke and direct injection
|
Rated power(kw)
| 51.4
| 55.1
| 58.8
|
Rated revolution
| 2400r/min
|
Start way
| Electric start
|
Transmission
| 4×3×(1+1) shifts
|
Clutch
| Single chip, dry friction, constant conjunction and double stage clutch
|
PTO speed
| 6 splined 540/720, or 6 splined 540/1000
|

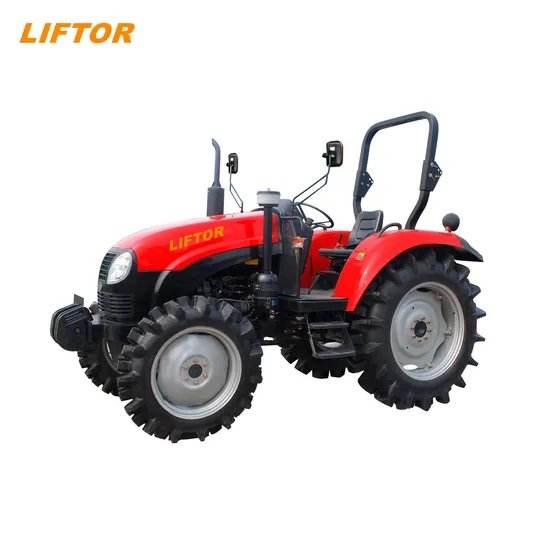

LIFTOR Tractor Pictures:
Optional Implements for Tractor :
About US:
"Liftor Enterprises" is a high-tech enterprise professionally specialized in R&D, production, sales, service of electric storage,intelligent industrial system, agriculatural tractor, lifting machine and wheel loader. It is located in Nanjing, Jiangsu Province with advanced forklift manufacturer technology, processing equipment and perfect product testing center.Our company is the China Automobile Industry Association member unit. We won the honorary title such as "Outstanding Enterprise of Quality Management, Credibility and Service AAA level", "National Enterprise of Good Creditworthiness", "National Quality Management Advanced Enterprise" etc. The company has already passed the safety production standardization and the quality authentication of ISO9001:2008 and European Union CE certification, fit-out national patent certificate.Our main equipment are agriculatural tractor, lifting machine, wheel loader and forklift. It is widely used in various places of modern logistics.
FAQ:
1. Manufacturer or Trading Company?We are leading tractor manufacturer for 20 years, and specialize in 12-240Hp tractors in China.
2. MOQ: Mini tractor: 8 units; Middle tractor(25-40hp): 2 units; Above 50hp: 1 unit
3. Spare Parts: Free toolbox and easy damaged parts.
4. Shippment: We can help you arrange shippment.
5. Delivery Time: Usually 25 days. In peak season,30-40 days
6. Warranty Time: Complete service system, 12 months since arrival of destination port
7. Payment Terms: We accept 30%T/T in advance, and 70% T/T before delivery
8. Tractor Options: Can be equipped with ROPS, Canopy, Cabin, AC Cabin, Air Brakes, Hydraulic Valve Out, Paddy Tire or as per your requirements.
9. Tractor Logo: We have our own logo. And we also can put your logo for free.
10. Package and Loading: (1).complete tractor package: 2 units/20GP, 4 units/40HQ;(2).Iron Frame Package: 8 units/20GP, 16 units/40HQ
11. Tractor Implements: Rotary tiller, disc plow, furrow plow, cultivator, front end Loader, backhoe, Mower, Trailer, Snow Blower or as per your requirements.
12. Part supply: Complete Parts Workshop, and can supply all parts
>>
