Hcvac PVD Vacuum Coating Machine for Stainless Steel, Ceramic, Glass, Plastic

Product Description

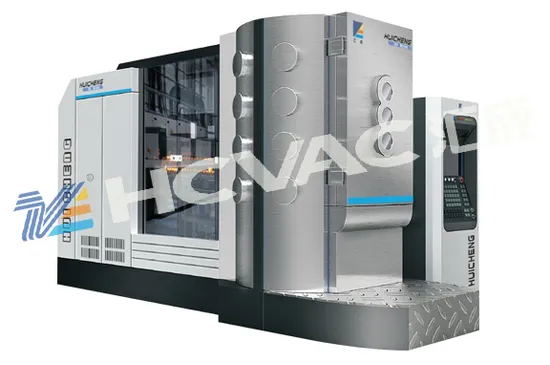

PVD Vacuum Coating Machine (HCVAC)
PVD, short for physical vapor deposition, is the technology to deposit thin film by evaporating or sputtering the material under the vacuum conditions. A vacuum chamber is necessary to avoid reaction of the vaporized material with air. PVD coating is used to provide new, additional value and features to the product, such as vivid color, abrasion resistance and reduced friction coatings. In general, HCVAC is specialized in PVD coatings.
HCVAC manufactures and supplies all kinds of PVD vacuum coating machines. Now it is a market leader in the high-vacuum treatment field with customers from all around the world. Huicheng produces a complete range of machinery, offering different types of processes: high vacuum evaporation, multi-arc, DC sputtering, MF magnetron sputtering, continuous magnetron sputtering line etc.
Parameters:

Mode Dimension	JTL-900	JTL-1100	JTL-1250
	900*1000mm	1100*1000mm	1250*1100mm
Coating mode and main confirguration	Six multi-arc targets + one set of column targets + one set of plane rectangle magnetron sputtering targets	Six multi-arc targets + a pair of twin (MF)magnetron sputtering targets	Twelve multi-arc targets + two sets of plane rectangle magnetron sputtering targets+ a pair of twin (MF)magnetron sputtering targets
Power source	Electric arc power, DC magnetron power, MF magnetron power, filament power, pulse power, linear ionized source.
Process gas control	Quality flowmeter + electromagnetism ceramic valve
Vacuum chamber structure	Vertical single(side) door, pump system postposition, double water-cooling
Vacuum system	Molecule pump +Roots pump +Mechanical pump(5.0*10 -5 Pa) Diffusion pump +Roots pump +Mechanical pump(5.0*10 -4 Pa)
Workpiece baking temperature	Normal temperature to 350 centi-degree PID control, radiation heating.
Workpiece motion mode	Public rotation Frequency control: 0-20 rotation per minute
Measure mode	Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa
Control mode	Manual/Automatic/PC/PLC + HMI/PC four choice of control mode
Remark	We can design the dimension of the equipment according to customer's special technique requirement.

Application
Surface vacuum coating for watch&clock, jewelries, tools, plastic, stainless steel sheet etc.
HCVAC decorative PVD films are routinely used as a replacement for electroplated chrome. They can be applied directly over almost any substrate material and can be deposited in a wide variety of colors. The process parameters to deposit each color are stored in software recipes with different process steps. Once the coating process has started, all of the relevant process parameters are continuously monitored and controlled by the on-board computer software.
Company Profile
The coating experts of your own company: Full set solution for the coating production.
Factory workshop:
Certifications

Packaging & Shipping

Clients

Our Advantages
Why Choose HCVAC system? Over 3000 plants installed worldwide Quick cycle times High production capability with low energy consumption More up time due to ease of loading/unloading and low maintenance High productivity with only a single operator Steel process chambers, built to last Eco-friendly Space saving design PVD option available on all plants 1 year component warranty and 25 years minimum guaranteed working life Complete global network of consulting, engineering and renowned after sales service
We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the full set special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.
ISO 9001 standard to ensure the quality can meet the customer's requirements.
Easy to implement: To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: Stripping (depending on the part's history); Pre-treatment; Quality control; Cleaning & drying; Fixturing & visual inspection; PVD coating; Quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.
Contact US
Please feel free to contact us for further information!

---
