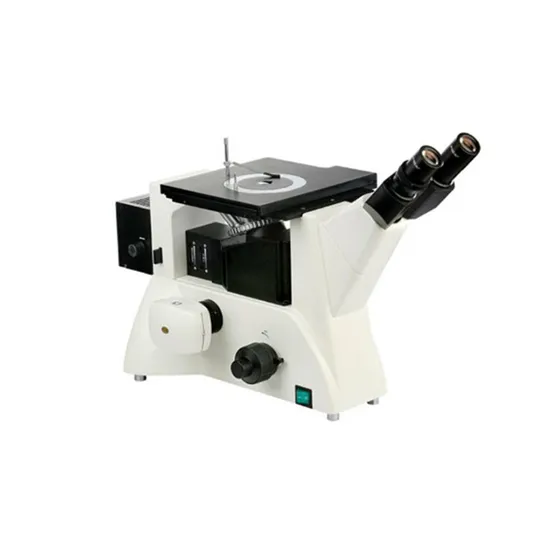

Fcm5100W Computer Inverted Metallographic Microscope

Product Description

Jinan Liling Testing Machine Co., Ltd. is a high-tech enterprise that integrates research and development, production, and sales. Experienced in research and development, supporting non-standard customization, OEM and ODM, manufacturer direct sales, fast delivery speed, and timely and guaranteed after-sales service.Product Description
Focusing mechanism
Using the bottom hand position coarse fine-tuning coaxial focusing mechanism, the left and right sides can be adjusted, fine tuning precision is high, manual adjustment is simple and convenient, users can easily get a clear and comfortable image. The rough adjustment stroke is 38mm, and the fine adjustment accuracy is 0.002mm.
Mechanical mobile platform
The 180×155mm large-size platform is adopted, and the right-handed position is set, which is in line with the conventional crowd operation habits. In the process of user operation, it is easy to switch the operation between the focusing mechanism and the platform movement, and provide users with a more efficient working environment.
Lighting system
The fall-fire Kola lighting system has a variable aperture stop and a center adjustable field stop, and uses an adaptive wide voltage 100V-240V, 5W high brightness,LED lighting or 6V30 halogen lamp.
FCM5100W computer metallographic microscope is a three-eye inverted metallographic microscope, using excellent infinite optical system and modular functional design concept, the machine has polarization observation, light and dark field observation and other functions. The compact and stable body with high rigidity fully embodies the anti-vibration requirements of microscope operation. The ideal design meets the ergonomic requirements, making the operation more convenient and comfortable, and the space is wider. Suitable for microscopic observation of metallographic structure and surface morphology, it is an ideal instrument for metallography, mineralogy and precision engineering research.
Product Parameters

Standard Configuration
Component	Specification
optical system	Infinite distance chromatic aberration correction optical system
observing tube	Hinged binocular barrel, 45° tilt; Pupil distance adjustment range 53~75mm.
ocular lens	Flat field large field eyepiece WF10X/22mm
infinity Light and dark field objective	PL L5X/0.12 BD WD9.70mm
	PL L10X/0.25 BD WD9.30mm
	PL L20X/0.40 BD WD7.2mm
	PL L50X/0.70 BD WD2.50mm
Converter	Ball positioning five-hole converter
focusing mechanism	Coarse micro coaxial focusing, with locking device, micro cell value: 2μm.
objective table	Mechanical mobile stage, overall size (242*200mm), moving range (30*30mm)
	The size of the circular rotary stage: the maximum outer diameter of 130mm, the minimum light aperture is less than 20mm.
illuminating system	12V50W halogen lamp with adjustable brightness
Polarizing attachment	Polarizing mirror group and polarizing mirror group
color filter	With frosted glass, yellow, green, blue filter
Metallographic analysis system	FMIA2022 genuine metallographic analysis software, USB2.0 SONY chip 12 million pixel camera device, 0.65X adaptive mirror interface, micrometer (with: specifications 100x0.01mm, 100x0.01cm, calibration point d = 0.15mm, d = 0.07mm).
Optional accessories
component	Specification
ocular lens	Flat field large field differentiation eyepiece WF10X/22mm
Optional objective (infinity Light and dark field objective)	PL L40X/0.60 BD WD3.00mm
	PL L60X/0.75 BD WD1.90mm
	PL L80X/0.80 BD WD0.80mm
	PL L100X/0.85 BD WD0.40mm
Computer	HP business computer

FCM5100W computer metallographic microscope size
Fundamental functions1. Organization analysis
2. Image measurement
3. National standard picture Librar
4. fixed print
5. Inspection report
FMIA2023 version of metallographic analysis software system composition:1. Software program FMIA2023 (U disk);
2. Encryption lock: USB + dynamic code verification;
3. Text materials: "Instruction manual" (on the U disk);
4. Microscale: grid value 0.01mm.
Hello dear, I am very glad to provide you with the product information of our company. These products have received very good market feedback from us. Would you please check whether the information is the machine you need? If you have specific needs and special requirements for the equipment, you can contact me and ask our technical engineers to give you a technical solution suitable for you. Because we support non-standard customization, you send the order to us, we will let you rest assured, no matter from the product quality or from the delivery date and later technical service support, we will 100% let you rest assured. We look forward to more in-depth exchanges and communication. Thank you!
Company Profile

Jinan Liling Testing Machine Co., Ltd. is a manufacturer of high-end testing equipment manufactured in China, and a technology-oriented enterprise with independent domestic high-quality technology research and development teams.
The company is located in a provincial-level industrial park, with senior engineers who have been engaged in testing machine design for thirty years and modern electromechanical integration engineering technicians with exquisite technology. We provide users with conventional testing machines that meet national, European, American, and industry standards, as well as design and develop various complex specialized testing equipment and mechanical equipment.
The company's management team collaborates with multiple enterprises, research institutes, and higher education institutions through innovative, open, and win-win thinking, combined with the industry university research model, to provide professional material mechanics solutions.
Operation principle:
Survive by quality, develop by science and technology, take customer as the center, create brand by service.
The company has successively obtained ISO9001 certificate, CE certificate, electro-hydraulic servo pressure testing machine, electro-hydraulic servo universal testing machine, electronic universal testing machine and other testing machine category type evaluation certificate, the national steel structure industry Association member unit.
Our company park is close to the west Viaduct of the Second Ring Road, the transportation is very convenient, the park covers an area of nearly 30,000 square meters, including the machining center, production and assembly workshop covers an area of 3,500 square meters, research and development department, technical service department and Marketing Department are located in the park Huayi Science and technology innovation office building, the company's management team with innovative, open and win-win thinking, Combining the model of production, university and research with a number of enterprises, research institutes and universities to provide professional material mechanics solutions.
Adhering to the business philosophy of "survival by quality, development by science and technology, customer-centric, and brand by service", our company has won the trust and support of domestic and foreign customers by creating a high standard production quality management system, advanced new product development center, perfect after-sales service system and efficient after-sales service process.
Packaging & Shipping
FAQ1. Are you trading company or manufacturer?
We are a factory at Shandong,China.
2. Do you have after-sales service? How can I ask? What about warranty?Before the delivery of the equipment, we will carry out the factory inspection and the equipment will be shipped after the inspection. If your machine does not work properly, you can contact us and we will try our best to communicate with you via email or skype video chat. We promise we will reply to you within 24 hours and with 3 Within a working day to provide solutions. After confirming that it is really necessary, we can send you new parts or on-site maintenance.
3. What is the delivery deadline?Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it urgently, we can consider making special arrangements for you.
4. Can the device be customized? Can I customize my own design on the device?We can not only provide standard machines, but we can also provide customized machines according to your needs.At the same time, we can also place your trademark on the machine.

---
