Five Axis High Precision Gantry Machining Center Double Column Heavy Duty Machine Tools Center Heavy Cutting Double Column CNC Gantry Milling Machine

US$28,000.00
1 Piece
US$18,000.00
2+ Pieces

Basic Info.

Model NO.
GMC2016
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE
Condition
New
Spindle Taper
Bt50
Spindle Motor
11/15kw
System
Syntec/Mitsubishi/Fanuc/Siemens
Max Load
4000kg
Name
Heavy Gantry Machining Center
X/Y/Z Speed
20/20/16 M/Min
Tool Alignment
Auto Tool Checking
Working Table
2000*1300
Precision
0.02/1000mm
Repeat Precision
0.015
Power
5.5kw 380V 3 Phase
Spindle Speed
6000 Rpm
Max Working Speed
8m/ Min
Applicable Industries
Machinery Repair Shops, Manufacturing Plant, Mold
Type
5axis CNC Machining Center
Transport Package
Sea Worthy Plywood Case
Specification
5800*3700*3900
Trademark
WT
Origin
Dongguan City China Prc
HS Code
8459619000
Production Capacity
2000PCS/Year

Product Description

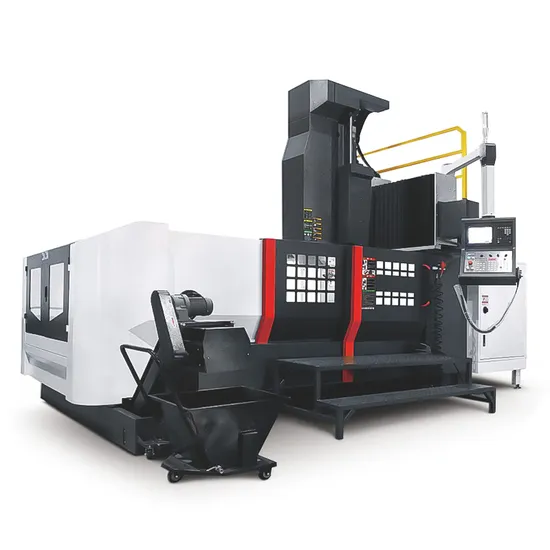

GMC2016 Five-axis High-Precision Gantry Machining Center Double-Column Heavy-Duty Turning/Milling/Grinding/Cutting/Drilling Hardware Machining Center
Product Description
A mobile gantry machining center machine tool, suitable for machining equipment for various large workpieces in aerospace, shipbuilding, power generation, construction machinery, locomotives, machine tools, textile machinery, printing machinery, molds and other industries. The high-strength, high-rigidity design of the machine tool and the structure of the large-flow discharge channel have the characteristics of high precision, high efficiency, flexibility, and environmental protection.
Product Paramenters
Item Unit GMC2016 GMC2516 GMC2018 GMC2518 GMC3018
Workbench area (LxW) mm 2000x1300 2500x1300 2000x1600 2500x1600 3000x1600
T-slot mm 7 7 9 9 9
Allowable load kg 4000 5000 6000 7000 8000
X/Y/Z axis travel mm 2000/1650/800 2500/1650/800 2000/2000/1000 2500/2000/1000 3000/2000/1000
Door width mm 1660 1660 1800 1800 1800
Spindle end face to table center mm 250-1050 250-1050 150-1150 150-1150 150-1150
Spindle taper hole No. BT50 BT50 BT50 BT50 BT50
Spindle maximum speed r/min 6000 6000 6000 6000 6000
Spindle motor maximum power kw 18.5 18.5 18.5 18.5 18.5
Feed X/Y/Z three-axis heavy-duty roller linear way
X/Y/Z axis rapid traverse speed m/min 20/20/16 16/16/16 16/16/16 16/16/16 16/16/16
Maximum chip speed mm/min 8000 8000 8000 8000 8000
Number of tools T 24 24 24 24 24
Positioning accuracy mm 0.02/1000 0.02/1000 0.02/1000 0.02/1000 0.02/1000
Repeatability mm 0.015 0.015 0.015 0.015 0.015
Machine weight T 19 21 21 23 26
