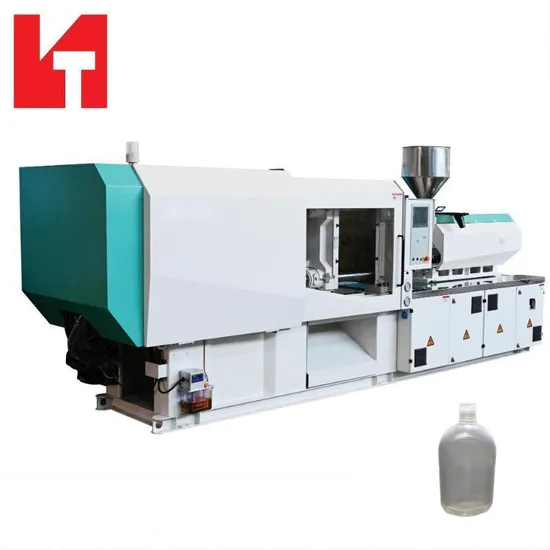

Affordable Reliable 1400kN Customization of Injection Mold Plastic Molding Machine for Medical Syringe and IV Set Making

Product Description

Product Parameters

Part	Name	Unit	NT140
Injection unit	SCREW DIAMETER	mm	38	42	45
	SCREW L/D RATIO	L/D	22	20	18.5
	INJECTION STROKE	mm	170	170	170
	NJECTION SPEED	Mm/sec	112	112	112
	SHOT VOLUME(THEORETICAL)	CM3	193	235	270
	INJECTION WEIGHT(PS)	g	175	213	245
	INJECTION PRESSURE	Mpa	177	145	126
	INJECTION RATE	cm³/sec	127	155	178
	SCREW SPEED	rpm	212
clamping unit	CLAMP FORCE	Kn	1400
	OPEN STROKE	mm	390
	SPACE BETWEEN TIE BARS	mm×mm	420X420
	MAX.MOULD HEIGHT	mm	460
	MIN.MOULD HEIGHT	mm	160
	EJECTOR STROKE	mm	120
	EJECTOR FORCE	Kn	46
	EJECTOR NUMBER	N	5
others	MAX.PUMP PRESSURE	Mpa	16
	SEVRO DRIVE POWER	Kw	18.5
	HEATING POWER	Kw	7.5
	MACHINE DIMENSION(L*W*H)	m×m×m	4.8*1.3*2.1
	MACHINE WEIGHT(ESTIMATE)	T	3.8

Product Description
Packaging & Shipping
Company Profile
Our Advantages
Q: Are you manufacturer or trading company? A: We are manufacturer with decades experiences,located in Zhejiang province. Q: What is the product range? A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc. Q: Where is your main selling market? A: We have business domestic,USA,Russia,Indonesia,Egypt,Turkey ,Uzbekistan, Pakistan,etc. Q: Will you offer field installation and operator training at the buyer's factory? A: Yes,we will arrange our skilled engineers for filed installation and training. Q: What is the delivery time(equipment production time)? A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment. Q: Do you also have source for molds and spare parts? A: Yes,we can offer with the competitive quality and reasonable price. Customized as required. Q: What is the standard of package? A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.

---
