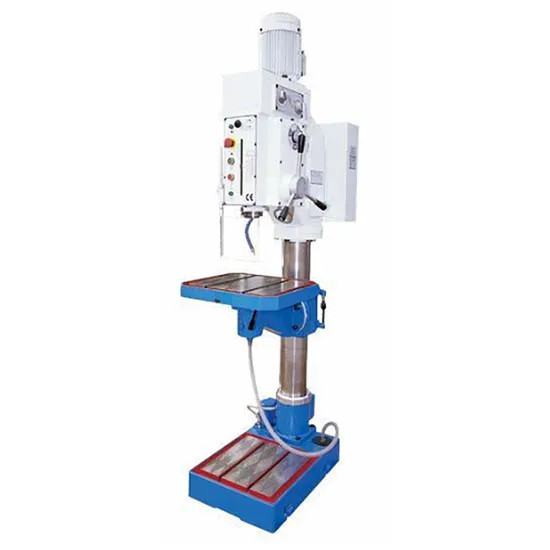

Vertical Drilling Machine Series. Z5035A Z5040A Z5050A

Product Description

Product Description

TSL250 Horizontal/vertical rotary table QM16160 Precision machine vice A & T-300 Air power drawbar
FW11160A Dividing head Universal machine vice Slotting head
Universal milling head Horizontal rotary table
Product Parameters

	Specifications	Units	Z5035A	Z5040A	Z5050A
	Max. drilling dia.	mm	35	40	50
	Max. tapping dia.	mm	M20	M24	M20
	Distance between spindle axis and column	mm	330	360	360
	Max. distance between spindle nose and table	mm	610	600	600
	Max. spindle travel	mm	150	180	180
	Spindle speed range	rpm	70-2600(12 steps)	42-2050(12 steps)	42- 1865(12 steps)
	Table effective working size	mm	424×424	370×500	500x370
	Spindle motor power	Kw	1.5/2.2	2.2/2.8	2.2/2.8
	Overall dimension	mm	920×550×2270	920×550×2270	980x580x2300
	Machine weight	Kg	670/730	740/800	800/860

Detailed Photos

---
