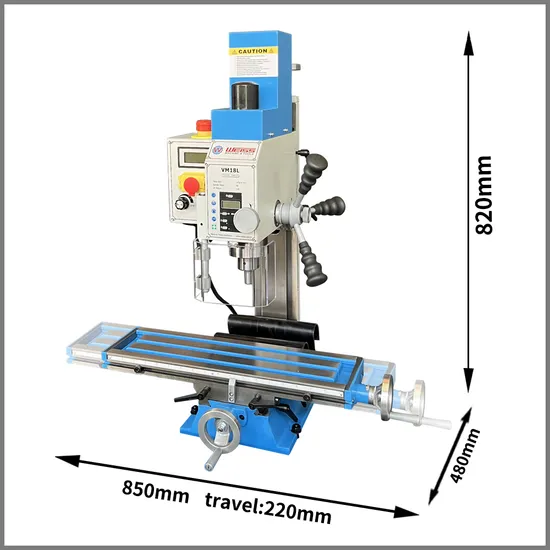

Weiss Vm18L Factory Supply Durable Milling and Drilling for Sale

Product Description

1. Big powerful 1 HP (750W) Brushless DC Variable Speed Motor
2. Single speed tooth belt driving system with 100-2250 RPM speed, provides easy and reliable operation, super silence runnning
3. Super-rigid precision-ground dovetail headstock column and table ways, precision handwheel control for X, Y, and Z-axis
4. All leadscrews are true inch pitch screws, larger dials with 0.609mm graduate for easier reading
5. True color LCD screen 3-Axis DRO system with magnetic scale
Want TOP quality? Come to WEISS, you can get the excellent value!

SPECIFICATIONS		Standard Accessories	Optional Accessories
WEISS MODEL	VM18L
Item No.	10203180	Drill chuck 3-16/ B16	Tapping Function
Max. drilling capacity	18mm	Drawbar	Keyless Drill Chuck 3-16mm
Max. end milling capacity	16mm	Arbor MT2/B16-M10	ER 25 Collet Chucks MT2(8pcs)
Max. face milling capacity	50mm	Digital Depth Ruler	Vice BMS80
Table size	500x140mm	Spindle Cover with Micro Switch	HSS 19 pcs Drill sets
Table travel (X,Y)	220X160mm	Toolbox and tools	End Mill Sets 7pcs 4-16mm
T-slot	3x10mm		3-Axis DRO(Magnetic Scales)
Spindle taper	MT2		58pcs clamping kits M10
Spindle stroke	50mm		Oil Tray
Step of spindle speeds	Variable		Stand
Range of spindle speeds	100-2250rpm		Luxury Stand
Spindle incline angle	±90°
Distance from spindle to column	175mm
Distance from spindle nose to table	275mm
Motor	750W
Packing size	500x540x840mm
Net weight	60KG

Details Spindle
VM18L Variable speed enables to operate easily

Spindle is supported by high precision taper roller bearing

Spindle RPM can be monitored on the digital readout
Spindle movement can be monitored on depth ruler in both inch or metric way

Brushless Motor
High efficiency
Low maintenance
Low energy consumption
Quiet while running
The life is 6 times as long as normal ones.
Single speed belt drive system provides more quiet and easy operation.
Tooth Belt provide strong and precision transmission.
VM18L precision manual fine down feed can be adjusted with the min. feed rate up to 0.609mm.
The Clear chip guard with switch-off function on the spindle keeps debris from flying at the operator.
Mill head can be tiltled 90 degrees.
Factory and Delivery
FAQ
1. What is your Warranty? 1 year, including accessories. We always offerprofessional technical support and good after sell service.
2. Can we pay by L/C or others?
Yes ,you can make the payment by T/T, Paypal etc. 3. What is your payment terms?
30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation. 4. What is your lead time?
It depends on different machines with different configurations. Please contact us to confirm it is in stock or not. 5. Do you have CE certificate?
Yes, we have CE certification, machine quality is guaranteed.
6. Can we purchase the accessories only?
Yes, we sell accessories of our machine as well.

---
