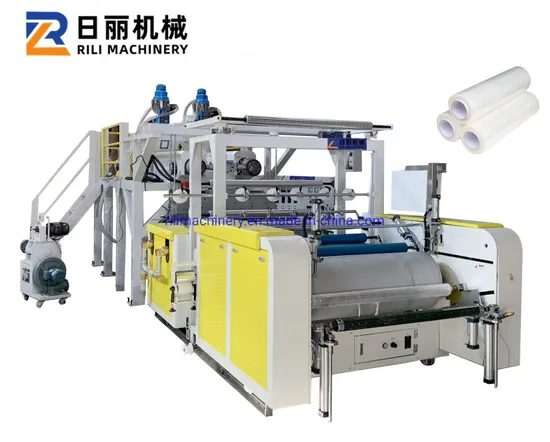

Plastic Stretch Film Making Machine

Product Description

Plastic Stretch Film Making Machine
MACHINE PARAMETERS:
MACHINE MODEL: RLS-φ55/75×1250
OUTPUT: 2.5~3 T/24hr
PRODUCT: PE STRETCH FILM
PRODUCT WIDTH: 100-1000mm or 3×300mm or 2×500mm
PRODUCT THICKNESS: 0.012-0.05mm.
RAW MATERIAL: LLDPE
LAYER: A/B/A
RATIO: 40%/60%
LINE SPEED(max): 120m/min
POWER: 3P, 380V, 50HZ
WHOLE POWER: 75KW
THE MAX. REWINDING DIA:φ300(MAX)
PAPER CORE ROLLER: INNER φ 76mm , OUTER φ 96mm.
MACHINE DIMENSION: L7000mm×W3000mm×H3400mm
MACHINE PICTURES:
1. CO-ETRUSION PART:
2. COOLING ROLLER:
3. WINDING PART:
4. ELECTRICAL CONTROL BOX
5. WASTE FILM RECYCLING DEVICE

---
