High Temperature Resistance Fused Silica Tube High Purity Clear Quartz Tubing

Product Description

Product Description

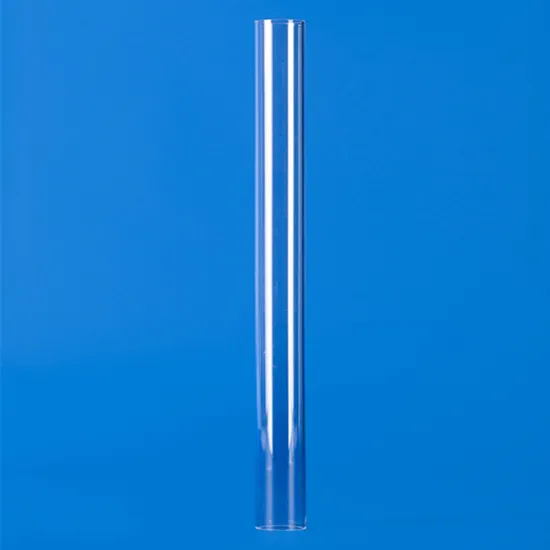

High Temperature resistance Fused Silica tube High Purity Clear Quartz Tubing
1.High purity :SiO2> 99.99%.
2.Operating Temperature: 1250ºC; Soften Temperature: 1730ºC .
3.Good thermal stability,lower coefficient of thermal expansion.
4.High Corrosion Resistant,acid and alkali, anti-corrosion ability.
5.Excellent electrical insulation,good electrical insulation properties.
6.Health care and environmental protection.
7.No air bubble and no air line, Accurate flatness, low thickness deviation etc.

SIO2	99.9%
Density	2.2g/cm3
Degree of hardness moh'scale	6.6
Melting point	1732ºC
Working temperature	1100ºC
Max temperature can reach in a short time	1450ºC
Visible light transmittance	Above 93%
Annealing point	1180ºC
Softening point	1630ºC
Strain point	1100ºC

Detailed Photos
Product Parameters
Specification Unit:mm

Diameter	thickness	Length
8-600	1-8mm	30-4500

Compressive strength	>1100Mpa	Coefficient of thermal expansion	5.5x10-7cm/cm. ºC
Bending Strength	67Mpa	Melting temperature	1750~1800ºC
Tensile Strength	48.3Mpa	The temperature for a short time	1500ºC
Poisson's Ratio	0.14~0.17	The temperature for a long time	1200°ºC to 1300 ºC
Elastic Modulus	71700Mpa	Resistivity	7x107.2.cm
Shearing Modulus	31000Mpa	Dielectric Strength	250~400Kvicm
Moh's Hardness	5.3~6.5(Moh's Scale)	Dielectric Constant	3.7~3.9
Deformation Point	1650ºC	Dielectric absorption coefficient	<4x104
Specific Heat(20~350°ºC)	670J/kgºC	Dielectric loss coefficient	<1x104
Thermai Conductivity	1.4W/mºC	Typical Mechanical Property of Fused Quartz

Certifications
Application
Packaging & Shipping
Packaging Details:Inner packing-------special protective packing for quartz products.
Outer packing------carton or wooden box, Shock absorption material and bubble wrapDelivery Time:7-20days
Delivery: Generally, we use the Fedex, DHL, UPS, TNT, Shunfeng, etc. Please note it before delivery. Transit time deponds on the express and destination. By the way, we would re-check all the details before delivery
Company Profile
Jiangsu Hongyang Quartz Products Co., Ltd. was established in 2004,It is a collection of quartz materials, synthetic materials, rare earth doping, semiconductor materials and finished products etc research and development, production, sales and integration of science and technology enterprises.
The main quartz products are: high purity quartz sand,high purity synthetic quartz glass, quartz tubes, quartz rods, quartz plates,large scale diffusion tube, quartz boats, quartz boat holder and other quartz finished products. They are widely used in light source, optics, photovoltaic, semiconductor, laser, aerospace and other fields. HongYang quartz focus on product development, with the advantages of integrated whole industry chain,industry-leading high quality products, and establish the long-term stable cooperative relationship with upstream and downstream leading enterprises.
The company is a National Specialized, Innovative New Small Giant Enterprise, National Intellectual Property Advan- tage Enterprise, National Intellectual Property Demonstration Enterprise, National High-tech Enterprise, National Innova- tive Small and Medium-sized Enterprise, Provincial Science and Technology Enterprise, Provincial Innovation Ability Demonstration Enterprise, Provincial Private Science and Technology Enterprise, Provincial Quality and Integrity 5A Level Brand Enterprise, and Provincial Pilot Enterprise for the Conformity of the Two-Chemical Integration Management System. It has been honored the "Science and Technology Entrepreneurship Contribution Award" and "National Science and Technology Innovative Enterprise" in China.
The company has "three centers and one station" innovation platform: Jiangsu Province Rare Earth Doped Functional Glass Materials Engineering Technology Research Center, Jiangsu Province Rare Earth Doped Functional Glass Materi- als Engineering Research Center, Jiangsu Province Enterprise Technology Center and Jiangsu Province Enterprise Graduate Student Workstation. In the field of quartz material manufacturing, Total 71 effective patents have been obtained, including 45 invention patents, 26 utility model patents, 6 China good technologies. Relying on the provincial innovation platform, the company leads rare earth doped quartz material manufacturing technology in China. It is currently the largest and most complete rare earth doped functional quartz glass material manufacturing enterprise in the domestic quartz industry.
Our services and strength
The company adhere to the integrity of business, experience, reasonable price, quality assurance, to provide excellent after-sales service, we sincerely welcome customers to come to negotiate.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the delivery time?
A: Within 15 days after receiving deposit.
Q3. Do you have any MOQ limit?
A: Low MOQ 1pc for sample checking is available
Q4. How to proceed an order in your factory?
A: Firstly let us know your requirements or application and drawings. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q5. How do you ship the goods and how long does it take to arrive?
A:DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive. Airline and sea shipping are also available.

---
