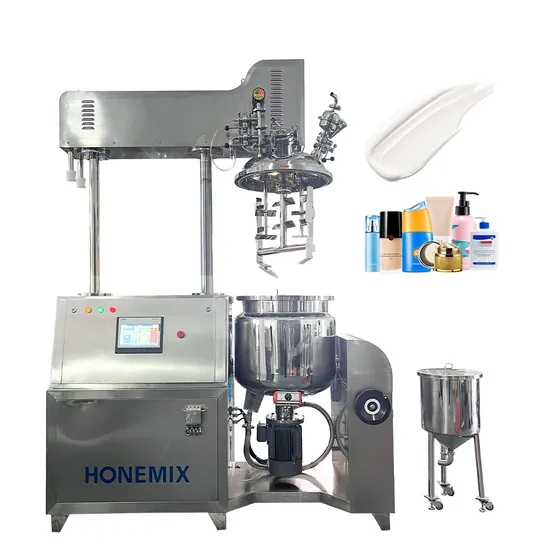

Hone 50L Touch Screen Small Batch Vacuum Emulsifying Mixer/ Bottom Homogenizer Emulsifier Heating Main Pot Water/Oil Pot

Product Description

Recommend ProductProduct DescriptionHone 50L Touch Screen Small Batch Vacuum Emulsifying Mixer/ Bottom Homogenizer Emulsifier Heating Main Pot Water/Oil Pot
Vacuum emulsifying mixer machine consist of Water and Oil pot, Main emulsifying tank, Vacuum system, Tilting discharge system, Hydraulic lifting system(OPTION), Mixing system, Homogenizer system and Heating/Cooling system. All those functions work together to produce batches of good cosmetics products.Detailed Photos

Item	VACUUM EMULSIFYING MIXER		Model	HY-J-50L
Capacity	50L(5-5000L Customize)		Material	SUS304/SUS316L
Voltage	220-480V/50-60Hz 3Phase		Power	25KW
Heating	Jacket Steam/Electric heating		Dimension	2020*900*1860
Mixer	1.5KW, Siemens motor		Speed	0-65rpm VFD
Homogenizer	2KW, Siemens motor		Speed	0-3600rpm VFD
VFD	Delta/Siemens/Panasonic		Electric	Delixi/Omron

Lid PartsMan-HoleMaterial suction inlet
Vacuum presssure gauge
Vacuum port
Vent filter
Positive pressure inlet
Perfume hopper
CIP spray ball
LED Light
Sight window Water and Oil PotMachine equipped A set of water and oil potWater pot capacity: 45LOil pot capacity: 30LPower: 0.75KW, Siemens motor, 1440RPMElectric heating by Water or Conduction OilMixing: High shearing Disperser plates with baffle on the wallHalf open hinged lid for easy operationFrame Wall Scrapper MixerSUS316L Wall scrapper mixerPTFE scraperFixed propeller45 degree blades on opposite angles to make sure mixture completeSiemens motor drive0-65rpm with variable speed controlTWO WAYS wall scrapper mixer HELIX scrape mixer(OPTION)Touch Screen
SIEMENS brand Button control (OPTION)Bottom HomogenizerSUS316L Homogenizer
Siemens motor drive (ABB is optional)
0-3600rpm with variable speed control
Upper homogenizer is optional

---
