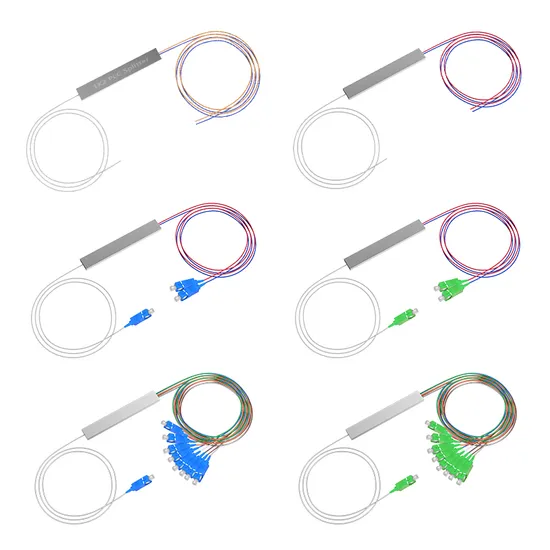

Premium 0.9mm Fiber Optic 1X2/4/8/16/32 Mini PLC Splitter for Sc/FC/LC/St

Product Description

Product Description Product Parameters

type	1x2	1x4	1x8	1x16	1x32	1x64
Working wavelength (nm)	1260-1650
Fiber type	G657A or customer specified
insertion loss(dB)	3.8	7.1	10.2	13.5	16.5	20.2
homogeneity(dB)	0.4	0.6	0.8	1.2	1.5	2
Polarization dependent loss(dB)	0.2	0.2	0.2	0.25	0.3	0.4
Return loss(dB)	55	55	55	55	55	55
directivity(dB)	55	55	55	55	55	55
Wavelength dependent loss(dB)	0.5	0.5	0.5	0.8	0.8	1
Temperature stability(-40~80ºC)(dB)	0.5	0.5	0.5	0.5	0.5	0.5
Operating temperature(ºC)	-40~85
Storage temperature(ºC)	-40~85
Bare device Size(mm)	40x4x4	40x4x4	40x4x4	60x7x4	60x7x4	60x12x16
Micro Module Size(mm)	60x7x4	60x7x4	60x7x4	60x12x4	80x20x6	100x40x6
Box Module Size(mm)	100x80x10	100x80x10	100x80x10	120x80x18	120x80x18	140x115x18
Product size(mm)	130x100x25	130x100x25	130x100x25	130x100x60	130x100x100	130x100x200

PLC Planar Waveguide Chip

type	1x2	1x4	1x8	1x16	1x32	1x64
Operating wavelength(nm)	1260-1650
Insertion loss(dB)	3.8	7.1	10.2	13.5	16.5	20.2
homogeneity(dB)	≤ 0.3	≤ 0.5	≤ 0.6	≤ 0.8	≤ 1.0	≤ 1.2
Polarization dependent loss(dB)	≤ 0.12	≤ 0.12	≤ 0.15	≤ 0.15	≤ 0.2	≤ 0.2

Company Profile
Shenzhen hengxian Technology Co., Ltd. focusing on the field of optical fiber, its own production workshop 3600 square meters, research and development, production and sales as one of the source manufacturers.
The main products include: Splitter series products, FBT cones, PLCs, plug - in splitters, fiber fusion splicers, optical power meters, red light pens, multifunctional all - in - one machines, stable light sources, fiber path - finders, line finders, testers, laser rangefinders, fiber cutting knives, etc. They are widely used by major COM - munication operators in China and exported to various parts of the world such as the Americas, Europe, Africa, the Middle East, and Southeast Asia, receiving unani - mous praise.

---
