Industrial Lab Borosilicate Pyrex Glass Blowing Lache Machine for Scientific Glassblowing Service

Product Description

Industrial Lab Borosilicate Pyrex Glass Blowing Lache Machine For Scientific Glassblowing Service

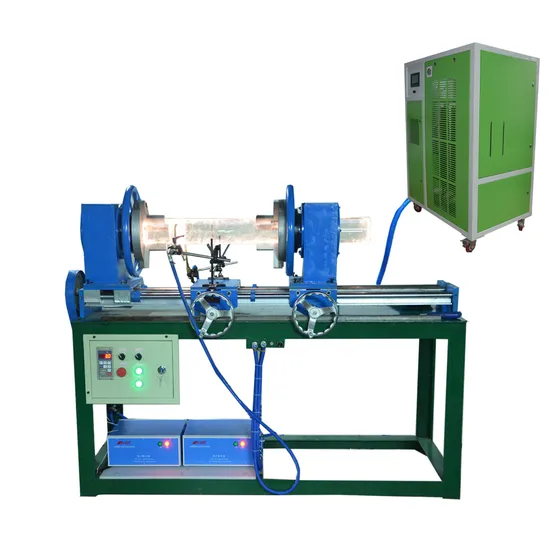

For large OD size of borate glass or quartz glass tube,we have rotary glass tube holding and sealing system with U-shaped oxyhydrogen flame torch. It is fast and efficient sealing way of laboratory high purity material.
It is to fix large sized borate glass or quartz tube for evenly heating.It is usually equipped with industrial oxyhydrogen generator OH2000,OH3000,OH5500 etc.
It can be used for 1. Fast sealing of laboratory high purity material 2. Tube sealing of batch factory material 3. Quartz tube sealing 4. Borate tube sealing 5. Fast sealing of laboratory other material 6. Fast professional preparation of laboratory material

Model	OK-M30	OK-M40
Name	Rotary quartz tube hold and sealing system
Rotating Speed	0-100r/min	0-100r/min
Thickness of Sealed Tube Wall	>2mm	>2mm
External Diameter of Sealable Tube	>15>55mm	>50mm
Number of flame torch	one straight oxyhydrogen flame torch	two "U"shape oxyhydrogen flame torch
Temperature Range	-20~200ºC	-20~200ºC
Optional Device	oxyhydrogen generators, electronic flashback arrestor	oxyhydrogen generators, electronic flashback arrestor

When sealing quartz tube, it is necessary to equip with industrial oxyhydrogen generators to melt glass tube fastly.Generally speaking,we suggest you choose the oxyhydrogen generators based on the the external diameter and thickness of glass tube.
Oxyhydrogen Technical Data
Small portable

Model Number	OH100	OH200	OH300	OH400	OH600	OH1000
AC Voltage Requirement (V)	220/110	220/110	220/110	220/110	220/110	220/110
Phase	single	single	single	single	single	single
Rated Power(KW/h)	0.4	0.8	1	1.4	2	2.5
Max Gas Output	100L/h	200L/h	300L/h	400L/h	600L/h	1000L/h
Max. Working Pressure (kg/cm 2 )	2	2	2	2	2	2
Max. Water Consumption (L/h)	0.06	0.1	0.16	0.21	0.33	0.53
Water Feed	manual	manual	manual	manual	manual	auto
Max. Flame Modifier Consumption (L/h)	0.05	0.1	0.15	0.17	0.15	0.2
Flame Modifier Feed	manual	manual	manual	manual	manual	manual
Dimensions - L*W*H (mm)	390*250*510	450*250*510	590*250*510	710*250*510	930*250*510	540*500*670
Gross Weight (kg)	15	20	25	35	45	80
Ventilation Space Requirement (mm)	200 in each direction	200 in each direction	200 in each direction	200 in each direction	200 in each direction	200 in each direction

Larger industrial

Model Number	OH2000	OH3000	OH5500	OH7500	OH10000	OH20000
AC Voltage Requirement (V)	380	380	380	380	380	380
Phase	three	three	three	three	three	three
Rated Power(KW/h)	6	9	17.5	23	31	70
Max Gas Output	2000L/h	3000L/h	5500L/h	7500L/h	10000L/h	20000L/h
Max. Working Pressure (kg/cm 2 )	2	2	2	2	2	2
Max. Water Consumption (L/h)	1.07	1.8	2.8	4	5.6	11.6
Water Feed	auto	auto	auto	auto	auto	auo
Dimensions - L*W*H (mm)	1070*670*1000	700*1100*1280	750*1300*1650	850*1300*1820	1050*1400*1900	2300*1100*1800
Gross Weight (kg)	210	300	396	552	610	1400
Ventilation Space Requirement (mm)	400 in each direction	400 in each direction	400 in each direction	400 in each direction	400 in each direction	400 in each direction

Products Description The hydrogen and oxygen gas bottles are usually used for quartz glass tube melting and sealing.
This is the tradition way for quartz melting with the risk of explosion.To meet the needs of safety,
working efficiency,Okay Energy develop the hho generator for quartz glass melting and sealing.
Oxyhydrogen technology uses water as medium to electrolyze water into H2 and O2, fire them to formed Oxyhydrogen Flame. The temperature of Oxyhydrogen flame is as high as 2800 degrees so that it can melt and seal quartz glass tube very fast. The quality and speed of Oxyhydrogen Flame sealing method is higher than Liquid gas's.
What is oxyhydrogen for quartz glass melting?The whole set for quartz glass tube melting and sealing include:1)hho generator,2)vacuum machine,3)tube sealing machine.The mix oxyhydrogen gas is generated from water by hho generator to form 2800 degree flame.
Wide application of HHO generator/oxyhydrogen generator
1.Welding
(1) Electronic Industry welding enameled wire, computer wire peeling, LED wafer, flame-treating circuit board thermocouple and platinum resistor leading wires.
(2) Medical Industry welding metal fittings and mending sand holes in dentistry.No-carbon flame disinfection and glass seal.
(3) Laboratory
(4) Jewelry Industry welding kinds of chain and string which are made of platinum, gold, silver, copper, stainless steel, etc. For mending tiny sand holes on jewelry casting and jewelry repairing.
2.Sealing
(1) metal and nonmetal heating
(2) glass tube sealing, quartz glass tube sealing
(3) ampoule bottles sealing
Shipment and Package
About shipping We have long-term cooperated shipping counrier providing one-stop safety and quick shipping service.
Flexible Shipping method by international express(DHL,Fedex,UPS etc),by air,by sea as your requirement.Or using your shipping forwarder.
About Package Standard export package,1set/carton;For industrail larger machine,1set/woodern pallet;
Okay Service
1.24hour online chat,email or phone support for inquiry,technical and after-sales service;
2.Warranty:1year.(The core part of machine for 1year.The other parts of machine for half of year in addition to human damage;
3.online trade assurance service(Protection buyer's payment regarding on-time delivery and product quality.)
Company Introduction
Okay Energy Equipment Co.,Ltd is one of the largest manufacturers in producing oxyhydrogen generator for over 10 years, we have autorized CE,ISO9001,FCC certificates and our own patents.We provide the best service and high quality products to our customers. If you have any questions, pls don't be hesitate to contact us.
