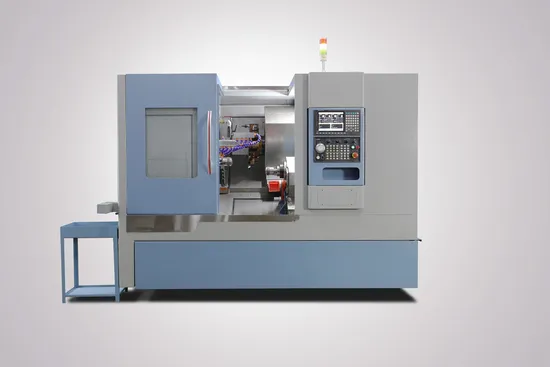

High Precision Double Spindle Swiss CNC Lathe Machine

Product Description

Product Description
Usage:
Two Spindle CNC Machine Tools are revolutionizing various mechanical processing fields by offering unparalleled precision and efficiency. They are indispensable in industries demanding high-performance machining such as automotive, motorcycle, valve manufacturing, pressure vessels, and other machinery sectors. Furthermore, they excel in hydraulic systems, oil circuits, aerospace, molds, and other specialized fields. These advanced machine tools can simultaneously process two workpieces or multiple surfaces, making them ideal for handling intricate and complex parts with ease.
Features:
High Efficiency: Equipped with dual spindles, Two Spindle CNC Machine Tools can perform simultaneous processing, significantly boosting productivity.
High Precision: Engineered to meet rigorous machining accuracy standards, Two Spindle CNC Machine Tools excel in achieving exceptional precision in cutting requirements. This includes internal and external roundness accuracy, roundness, coaxiality, and more.
Space and Labor Cost Savings: Serving the functions of two separate machines, Two Spindle CNC Machine Tools dramatically reduce the space needed in production workshops. Additionally, their ability to handle dual procedures simultaneously slashes the number of operators required, effectively lowering labor costs.
Product Parameters

Project		Name	specification	Unit
Process range		Max bed rotating diameter	Φ400	mm
		Maximum processing length	500	mm
		Maximum processing diameter (shafts)	Φ75 Φ45	mm
		Maximum processing diameter (disk type)	Φ400	mm
X / Z / Y X2 / Z2 / Y2		X / Z / Y axis travel	500 / 600 / 100	mm
		X2 / Z2 / Y2 Axis Travel	400 / 650 / 300	mm
		Repetition accuracy X / Z / Y	±0.003	mm
		Position accuracy	±0.005	mm
Movement		X / Z / Y	30/30/28	mm
		X2 / Z2 / Y2	30/30/18	mm
Screwdriver		X / Z / Y	32/36/40	mm
		X2/Y2/Z2	32/33/25	mm
Rails		X / Z / Y	35/35/30	mm
		X2/Y2/Z2	30/35/25	mm
Turrets		Turrets	12T
		Turning tool specifications	25X25(rectangular)
		Bore cutter specification	Φ25 Φ32	mm
Spindle		Positive/sub spindle nose form	A-26(75) / A2-5(45 ) - A2-4(36)	/
		Through-hole diameter of main/sub spindle	Φ75(Φ45) / Φ36	mm
		Positive/sub spindle speed	3500-4500 / 5000	rpm
Control System		Positive/sub spindle motor power (electric spindle)	18.5 / 7.5	kw
		X / Z / Y axis servo motor	3.0 /2.2 / 2.0	kw
		X2/ Z2 / Y2 axis servo motor	1.8 / 2.0 / 1.0	kw
		Turret power head milling cutter motor/backside shaft end motor	2.0 / 1.0	kw
Dimension		Length/Width/Height	2700 X 1950 X 2050	mm
		Heavy	4.9	T

Detailed Photos
Turret: Each turret can be configured with an impressive range of tools, such as 12, with a mix of powered holders (e.g., 8) for rotary-based cutting and unpowered ones (e.g., 4). This versatile multi-tool configuration endows the machine with the agility to meet diverse machining requirements seamlessly.
Spindle: The dual spindle dual turret lathe showcases exceptional versatility. It expertly handles turning processes for external circles and end faces, while also excelling in continuous processing of front and back surfaces, milling plane surfaces, drilling center holes, opening side grooves, and performing slanting hole and surface processing at arbitrary angles.
This sophisticated multi-process, multifunctional composite machining capability significantly minimizes auxiliary time while enhancing machining accuracy and efficiency.

CNC system: The double spindle Swiss CNC turning bench lathe is governed by a cutting-edge CNC system, enabling fully automated machining through advanced computer programming. This CNC system comprises both hardware and software components. The hardware includes the CNC unit, servo motor, drive, and sensors, whereas the software encompasses the machining program, user interface, data processing, and more.
Automatic Measurement and Compensation System: This innovative system provides real-time online detection and correction throughout the machining process, significantly boosting machining accuracy and stability. Various parameters such as temperature, vibration, and cutting force are monitored continuously by sensors, allowing real-time adjustments and optimization based on the monitoring results.
Processing Range
Our advanced CNC machinery is uniquely designed and feature-packed, making it perfectly suitable for the following types of parts:
Parts with Uncompromising Precision Requirements:
Outfitted with a state-of-the-art high-precision motion control system and an automatic measurement and compensation system, our twin-spindle CNC lathe guarantees impeccable precision. This unparalleled accuracy makes it the ideal choice for machining parts where exactness is paramount.
Intricately Shaped Parts:
Boasting five-axis linkage processing capabilities, our lathe can effortlessly handle the most complex parts and surfaces. Whether it's internal and external cylindrical surfaces, conical surfaces, stepped surfaces, spherical surfaces, or a variety of intricate rotary surfaces, our machine excels in producing geometrically complex components.
Parts Requiring Multi-Process and Multi-Function Operations:
With dual spindles and dual turrets, our machine performs simultaneous multi-axis machining with ease. It seamlessly executes a myriad of processes including external round and face turning, continuous machining of front and back surfaces, milling flat surfaces, drilling center holes, side grooving, as well as slanting and beveling holes at any angle.
Parts with Versatile Material Compatibility:
Engineered to handle both rough and finish machining, our machine effortlessly works with rough cast and forged parts made from an array of materials including high-temperature alloys, titanium alloys, heat-resistant alloys, stainless steel, cast iron, and cast steel. This extensive material adaptability makes our CNC machinery an invaluable asset across diverse industries.
Our Advantages
Dongguan Luotuo Industrial Co., Ltd offers exceptional pre-sales consulting services, meticulously recommending the most suitable CNC lathe models and configurations tailored to your specific requirements. Our expert team is prepared to answer all your questions and provide comprehensive technical support. We specialize in crafting bespoke solutions that encompass every aspect of your needs, from equipment selection and process design to installation and commissioning. Our one-stop services are designed to meet the unique demands of each customer, ensuring a seamless and personalized experience.
Harnessing an advanced CNC system, our machinery achieves precise control and unparalleled efficient machining. With support for complex programming and parameter adjustments, we guarantee unmatched machining accuracy and efficiency, empowering you to tackle even the most intricate tasks with ease.
Our CNC lathe is constructed from premium materials and undergoes a precision manufacturing process to ensure exceptional stability and reliability. This meticulous craftsmanship minimizes failure rates and maintenance costs, significantly boosting productivity and operational efficiency.
Packaging & Delivery
FAQ
1. What are the Payment Terms?
A: We accept T/T payments. To initiate your order, a 40% deposit is required upfront, with the remaining 60% balance payable before shipment of your Advanced CNC Machinery with Metal-Cutting Lathe and High Precision Milling Machine Tools.
2. What are your Trade Terms?
A: We offer flexible trade terms to suit your needs, including FOB (Free On Board), CFR (Cost and Freight), and CIF (Cost, Insurance, and Freight).
3. When is the Delivery Time?
A: For standard models of our Advanced CNC Machinery, delivery can be arranged within 30 days. Custom or specialized machines may require additional lead time. Orders are processed based on our detailed delivery and shipping schedule.
4. What is your Minimum Order Quantity and Warranty?
A: Our minimum order quantity (MOQ) is just one set. Each machine is backed by a comprehensive one-year warranty, ensuring reliability and peace of mind.
5. How are the Machines Packaged?
A: Our machines are meticulously packed in industry-standard wooden cases, providing the utmost protection during transit to ensure they arrive in perfect condition.
6. How Can I Choose the Most Suitable Machines?
A: Simply provide us with your specific requirements and we'll recommend the most suitable model for your needs. If you already have a model in mind, we can accommodate that as well.

---
