Woodworking Multi Blade Saw Planks Cutting Machine Wood Panel Board Planks Multi Blade Sawmill for Sale

Product Description

Woodworking Multi Blade Saw Planks Cutting Machine Wood Panel Board Planks Multi Blade Sawmill For Sale

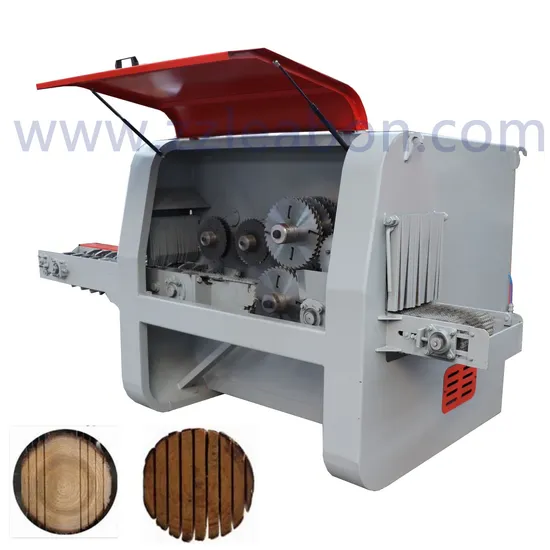

Product Introduction of Multi blade sawmill:
This kind of wood multi blad saw machine is mainly used for cutting the material, processed into multiple specifications plate.Apply to refers to the board,joinery board, such as the ideal plate woodworking machinery equipment. Main application of Plate Woodworking Apply To Joinery Board Multi-Rip Saw woodworking industry, such as boarding making, laminated wood, boarded, floor, packing case and pallet, as well as building trades.
Specification of multi blade sawmill:

Model	LBBC16-40	LBBC20-40
Working scope	Sawing the square wood	Sawing the square wood
Workbench :Lengthen the front and rear workbenches by 1.5 meters each
Sawing wood length	1000-4000mm	1000-4000mm
Sawing wood height	80-160mm	100-200mm
Sawing wood width	400mm	400mm
The specifications of the wood plate	Open all pieces into a specification plates	Open all pieces into a specification plates
Whether intelligent speed regulation	Yes	Yes
Saw blades specification	305*2.6/2.1*70*36+4	355*3.2/2.6*80*36+4
Saw blades quantity	20pcs	20pcs
Main motor power	45+45KW	55+55KW
Feeder power	1.5KW+0.55KW	1.5KW+0.55KW
Main shaft specification	Baldes position width:400mm. Blades diameter:70mm.	Baldes position width:400mm. Blades diameter:70mm.
Electron components brand	Delixi brand	Delixi brand
Main machine dimension	2600*2000*1900	2600*2000*1900
Main machine weight	3000KG	3500KG

Main feature of multiblade sawmill 1.Flat and smooth sawing surface
2.Energy-saving and low waste with the multi-blade design;
3.High feeding speed and greatly improve efficiency;
4.Fast loading, easy operation and high timber utilization;
5.The Upper pressing rolls increase automatically tensile force to ensure stable feeding;
6.The axis of hydraulic cooling method can increase the effects of the spindle cooling and decrease electric cost.
