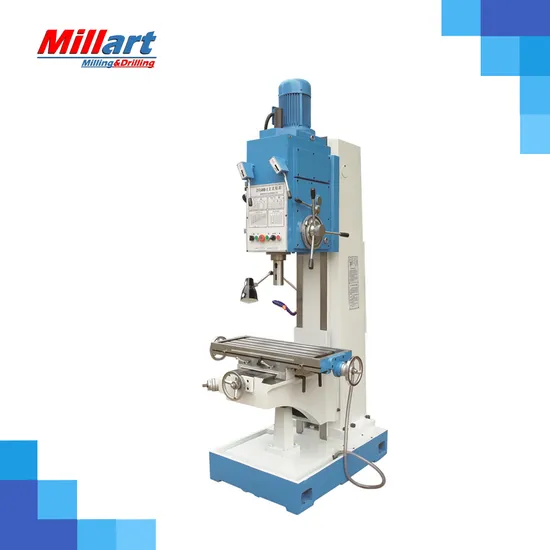

Square-Cplumn Vertical Drilling Machine Z5140A Z5150A Z5140b Z5150b, Cross Slide Table Metal Drilling Machine

Product Description

Product Description
Technical parameter :
Feature :
Square-column vertical drilling machine is a universal general-purpose machine. Its used for counter-sinking, spot-facing drilling, tapping, boring, reaming, etc.
The machine has catch the function of tap-automatically reversing device which is suitable for tapping of blind and determined holes.
The machine has high efficiency, high accuracy, low noise, wide range of variable speed, centralized controls good looking appearance, easy maintenance and operation.
Model Z5140B / Z5140B with cross table, can move on X and Y axis.
Technical parameter :

Model	Z5140A/Z5150A	Z5140B/Z5150B
Max drilling dia (mm)	40/50	40/50
Max.feed resistance(N)	16000
Spindle torque (Nm)	350
Spindle taper (mm)	MT4/MT5	MT4/MT5
Spindle travel (mm)	250
Spindle box travel by manual (mm)	200
Spindle speeds range(steps)r/min	31.5-1400(12)
Feed rates(steps)Feed rates(steps)	0.056-1.80(9)
Table size (mm)	560x480
Max distance from spindle nose to worktable surface(mm)	780/740		830
Table vertical travel (mm)	300
Distance from spindle to column(mm)	335
Main motor power (kw)	3/4	3/4
Overall dimension (L×W×H)(mm)	1090x905x2535
Net Weight (kg)	1250/1190
Packing dimension(L×W×H)(mm)	122X80×248 /122X80x224

Sandard accessories:
Coolant system
Work lamp
Drill chuck
Reduction sleeve
Wrenches
Optional accessories:
Machine vise
Spindle guard
Depth indicator Company information:
Packaging&Shapping
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
