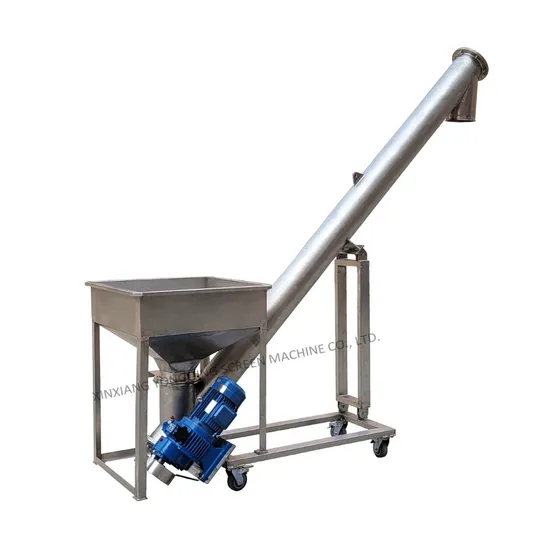

Tube Pipe Inclined Small Screw Conveyor for Coffee Bean

Product Description

Introduction
The LS series screw conveyor as a material handling equipment , can be widely used in a number of industries like building material, metallurgy, chemical, coal, and grain food processing. To be specific, it can be served as powder conveyor, granule conveyor, pellet conveyor and small lump conveyor, for transfter materials like sand, lime, cement, coal powder, fertilizer, animal feed, grain, sugar, spice , coffee etc.

Product Features
Product Parameters

Model	Spiral diameter (mm)	Pitch (mm)	Spiral Rotating speed (r/min)	Capacity (m3/h)	Power (kw)	Inclination angle (°)
LS100	100	100	140	2.2	2.2---18.5	≤ 60.
LS125	125	125	125	4.0
LS160	160	160	112	8
LS200	200	200	100	11
LS250	250	250	90	22
LS315	315	315	80	34
LS400	400	355	71	64
LS500	500	400	63	95
LS630	630	450	50	150

Electric Power Supply
phase : single phase or three phase
voltage : 110V /220V /380V /415V
frequency : 50HZ or 60HZ
Detailed Photos
Application

Packaging & Shipping
FAQ Please provide the follow information to get a suitable model:
1. Your application?
2. The capacity (kg/h) you require?
3. You prefer to Horizontal type or inclined type, or vertical type?
4. The height from outlet to floor?
5. Which material is selected? Stainless steel 304 or Stainless steel 316L or Carbon steel?

---
