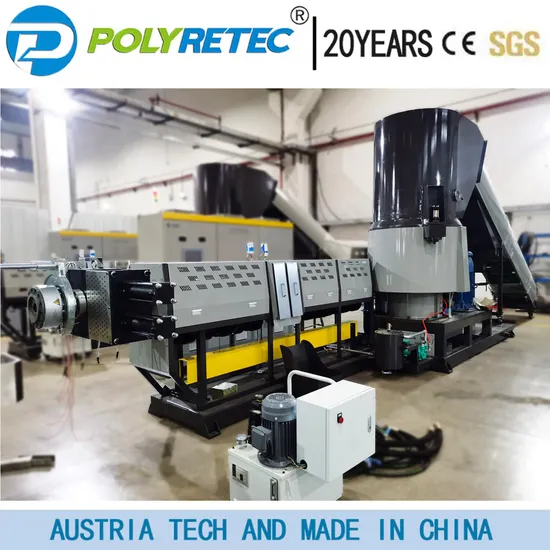

PE Bag Recycling Machine for Jumbo Bag Recycling

Product Description

Product Description
PE HDPE LDPE LLDPE Film/Bag, PP/BOPP Film Pelletizing Recycling Machine Line
We provide machine testing by your raw material / Turn-key recycling system available!
Suitable to recycle: Industrial waste from production line(e.g. from film/bag/sheet making machine, un-used heavy printed film/bag), Clean dry plastic film/agricultural film/greenhouse film/tobacco film, etc. from Washing line
01 - Technical parameter

Model	PTCS80	PTCS100	PTCS130	PTCS150	PTCS185
Screw diameter (mm)	80	100	130	150	185
L/D	18-42
Rotating speed (rpm)	10-150
Output (KG/h)	150-250	200-350	450-600	600-700	800-1200

02 - Effect show
03 - Specification details

Model	PTCS Three-in-one plastic recycling machine
Final product	Plastic pellets
Recycling machine structure	Conveyor belt, crusher/compactor, extruder, pelletizing unit, water cooling unit, drying unit and storage drum, degassing unit, filter unit
Recyclable materials	HDPE, LDPE, LLDPE, PP, BOPP, CPP, OPP, etc.
Capacity	200-1000/hr
Feeding system	Belt conveyor, clamp wheel set (optional)
Screw diameter	80~185mm(customized)
Screw length to diameter ratio	30/1, 32/1, 33/1, 34/1, 36/1 (customized)
Screw material	38CrMoAlA or Bimetal
Degassing hole	Double degassing hole, single degassing hole or no degassing hole (customized)
Filtering system	Double-cylinder filtration
Pellet type	Hot die-cutting type (water-ring cutting)
Cooling method	Water cooling
Voltage	Customization (for example: 480V 60Hz in the United States, 440V/220V 60Hz in Mexico, 380V 60Hz in Saudi Arabia, 415V 50Hz in Nigeria)
Optional accessories	Metal detector (S+S Germany), wheel set, color master batch and additive meter, centrifugal dehydrator
Delivery date	It takes 45~70 days to customize the machine.
Warranty	One year
After-sales service	Engineers can be dispatched to customers' overseas factories to assist in machine installation

04 - Machine Process
05 - Features
06 - High Performance Plastic Recycling Granulation/Pelletizing Machine
07 - Customer Site Example & Suitable Industry
Why we are your reliable strategic plastic recycling machine partner?

Suzhou Polytec Machine focuses on R&D and manufacturing of complete set of waste plastic recycling and processing systems and has provided services to customers over 30 countries through high-quality customized solutions, professional real-time technology and after-sales service. POLYTEC is currently working on four directions: 1. Waste plastic cleaning and classification: waste plastic films, bags, barrels, bottles, etc. are broken and cleaned, and plastics of different materials are separated, which are directly used in downstream industries such as recycled plastic granulation; 2. Recycled granulation of waste plastics: recycled granulation after cleaning of factory materials and post-consumer plastics; 3. Development of key machinery for recycling and recycling: R&D and manufacturing of key models for different materials in different industries, and provide key equipment for various process routes; 4. Waste electronic waste treatment: Provide system-wide process design and development and reuse for the growing consumer electronic products. 5. Design and implementation of project engineering: Our company provides guidance on plant design layout in the early stage of the project, and the overall installation of on-site water and electricity

Technology:

With Austrian Technology & Made in China Complete machine range: waste plastic washing line and pelletizing line Use our own factories to manufacture waste plastic recycling machines With more than 15 national patents

Team:

Our CEO with over 20 years' experience in international trade business Our staff with over 15 years' experience in machine R & D, manufacturing and testing field Our assembling workers with over 5 years' experience in our industry

Certificates:

With CE certificate

Profession:

Customized machines are welcomed Instructions and other files are equipped The machine supports the third-party inspection for quality assurance

Services:

Perfect pre-sales service and after-sales service Support machine testing by using customer's raw material After-sales machine testing service is available. (Online instruction also available)

Sample projects:

We already provided machines for customers over 30 countries, such as Mexico, Peru, Australia, Poland, Greece, South Africa, Korea, India, etc.

Daily Work Show
Exhibition Show
After-sales Service Show
Ordered Customer Show & Cooperated Brands
Customer Plant View
Commissioning & installation:
- After all machines are delivered to buyer's factory; Buyer is responsible for all preparation work, e.g. electricity supply, water supply, labors and cranes, etc.
- Seller will prepare for visa application for their engineer, who is responsible for guidance of machine installation and testing at Buyer's factory to meet normal operation requirements.
- Buyer will buy the round-trip air ticket for Engineer if visa application is approved. Buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation, and allowance of USD100 per day for each engineer.
- Engineer will give free training lessons to labors in Buyer's factory.
- Buyer doesn't request installation and commissioning by seller engineer in 4 months since date of bill of lading, which to be accounted all the machines has been successfully tested by Buyer.
WELCOME to visit our factory or Sample Project - Seeing is believing!
Just contact us for more!

---
