Warehouse Storage Racking Pillar Upright Shelf System Making Roll Forming Machinemanufacturer for Sale

Product Description

Warehouse storage racking pillar upright shelf system making machine
Product Description
1.Profile drawing:

No	Specification of the material
1	Suitable Material	Galvanized steel, Mild Steel
2	Width of the raw material	According the profile
3	Thickness	1.5-2.5mm

2.Machine Detailed Parameters:

1	Machine structure	Wire electrode cutting system
2	Total power	About 67kw
3	Roller stations	About 21 stations+ one station of rectify
4	Roll forming speed	Around 20m/min
5	Drive system	By gear box
6	Diameter of shaft	¢85mm
7	Voltage	380V 50Hz 3phase

3. Specification of Components

No	Photos for reference	Technical Specification & Remark
1	5T Hydraulic un-coiler	Steel coil width: 580 mm; Internal diameter of coil: variable, from 450 mm to 550 mm Out diameter:1200mm Coil weight: 5000 Kg; Main power: 5.5kw AC motor Hydraulic power: 4kw Speed controlled by frequency converter Quantity: 1
2	Flatten	Feeding roller: diameter is ¢85mm, material is 45# steel, HRC48-52° surface with chrome Leveling roller: upper is 3 rollers, down is 4 stations(total is 7 stations), material is 40CR steel, HRC48-52°. Power:5.5KW
3	Servo feeding& punching machine	Servo feeding: Machine adopt servo feeding and punching machine to make high speed and accuracy Servo power:4.4kw Brand: YASKAWA Feeding precision:±0.5mm Punching machine: Description: Machine adopt servo feeding and punching machine to make high speed and accuracy Punching machine adopt continue punching Brand of punching machine: Yang Li of China. Technology details of punching mould: Punching mould material: Cr12 with heat treatment
4	Main Machine:	Roll station: about 18 stations with one station of rectify Material of roller: Gcr15 steel, coated with chrome HRC58-60° Material of main shaft: 40CR, diameter roller: Ф85mm Main power: 22KW To avoid accidents, the driven parts will be covered with the protective cover Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase Machine will have cooling system for rollers Machine include 3 sizes, change size need adjust roller by spacer.
5	Machine structure:	Main frame by whole plate welding Machine structure: Wire-electrode cutting Transmission: by gear box
6	Hydraulic cuttings system	Machine adopts hydraulic flying cutting system, cutting with waste Cutting power by hydraulic, 11KW Cutting after forming: Cut the sheet after roll forming to required length Cutting motion: The main machine will not stop when cutting, servo motor in 3kw, YASKAWA brand Material of blade: Cr12 with heat treatment 58-60° Length measuring: Automatic length measuring Tolerance of length: +/- 1.5mm

Detailed Photos

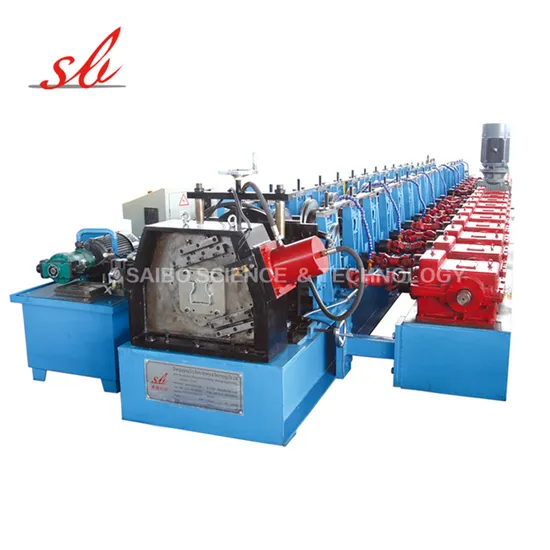

4. Machine photos for reference
View more products,click here...
https://saiborollforming.en.made-in-china.com/product-list-1.html
Warranty
Warranty
warranty: 1 year warranty from date of shipment
guarantee:
1: guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. repairs will be made free of charge.
2: repairs will not be performed free of change even during the guarantee period in the follow circumstances
- damage occurs due to a natural disaster
- malfunction occurs due to user error
- malfunction occurs due to modifications
- malfunction occurs due to further movement or shipment after installation
3: air ticket, transportation cost, hotel, meals and 80$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.
After Sales Service
Servies
Saibo's Online Service.
Saibo Machinery Services Online gives you fast and easy online access to your Installed Base to order your SAIBO original spare parts and explore the Options & Upgrades relevant for your line.
It is a user-friendly interface, available 24/7, in 9 languages, and is your one-stop online shopping. Designed to make your life easier in your day to day business, it will help you to improve your line and maintain its performance.
SAIBO Services Online helps you:
1 - Machine running video
2 - Watch our factory online
3 - Supply a running line in your country, you can see the machine running directly.
Packaging & Shipping
7.Packing & Delivery

Packing	1.Machine is nude loaded in the container .
	2.The electric controlling box is packed by protect film .
	3. All the spare parts are put in the wooden box .
Delivery	1. Sea shipping .
	2. Air shipping for sampling .
	3. Train shipping for landlocked countries serviced by CRExpress Europeblock train ferry .

View more products,click here...
https://saiborollforming.en.made-in-china.com/product-list-1.html Company Profile
About Saibo
40 years history in Metal roll forming machine industry30 years experienced engineersFocus on machine quality and automatic with reasonable priceExperienced technician can be sent to install machines abroad200+ sets of machines exported each year
24 hours on line service
Zhangjiagang City Saibo Science & Technology Co.,Ltd. is a professional manufacturer specializing in the developing and exporting of different kind of high speed roll forming machine, Main use of our roll forming machine is for Solar Structures, PEB project and also for Cable tray, Guard Rail, Roofing Sheets, Floor Decking and all of different kind purlin/channel which make from GI/PPGI/PPGL/Aluminium/Aluminium alloy/SS . Our company, which is located in zhangjiagang city,Jiangsu province, near Shanghai City with superior geographic position and convenient transportation.
Zhangjiagang Saibo Science & Technology Co., Ltd engaged in the steel structure industry in 30 years and devoted to developing some steel structure machines with a professional technology and reasonable price, we supply the best machines for our new and regular customers . All of our technology team and marketing person all more than 10 years working.In particular, we are a leading exporter in the field of steel structure construction, and can provide professional service, high quality ,through design, and installation. Our goal is" future by heartiness, faith leads to the world"
Warmly welcome to visit our factory and we are looking forward to cooperating with you for mutual benefits.
View more products,click here..
https://saiborollforming.en.made-in-china.com/product-list-1.html
FAQ
FAQ
Q1 : How to find Saibo? 1. Search Made-in-China find Saibo, suppliers and manufactrue and not traders
2. Visit exhibition in different countries
3. Send Saibo an request and tell your basic inquiry
4. Saibo sales manager will reply you in short time and add instant chatting tool
Q2 : You are welcome to our factory at any time .
1. If we can fullfill your request and you interested in our products, you may pay a visit to Saibo site
2. The meaning of visiting supplier, because seeing is believing, Saibo with own manufacture and developed& research team, we can send you engineers and make sure your after sales service.
Q3 : How to guarantee your funds to be safe and delivery to be on time ?
1. By letter of credit, you can lock the delivery time easily.
2. After the factory visit, You can ensure the facticity of our bank account.
Q4 : See Saibo how to ensure the quality !
1. In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
2. Each component before assembly needs strictly control by inspecting personnel.
3. Each assembly is in charged by a master who has working experience for more than 5 years
4. After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory
Q5 : The after-sale service of Saibo !
1. After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
2. After the commissioning, we will package the equipment by standard export package for shipment.
3. According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
4. Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.

---
