Small Table Fan 10 Inch Household Fan Motor Large Air Volume

Product Description

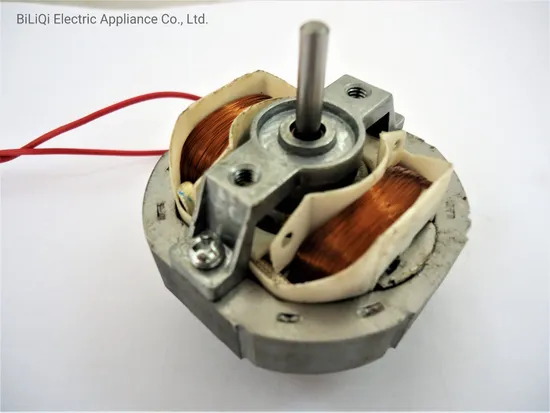

Model SP60C Fan Shaded Pole Motor
Adopt automatic production process, each part processing is controlled by computer, computer acceptance, meticulous quality
It has the characteristics of environmental protection, durability, high speed, low power consumption, low temperature rise and so on. The traditional process is still popular with the public, flame retardant environmental protection wireframe can ensure the safety of products. Low noise and high quality oil bearing, quiet and reliable, stand the test of time. Widely used in all kinds of small household fans, base clamping fans and so on.
Deeply loved and adopted by the home appliance industry at home and abroad, can be debugged and customized according to the requirements, welcome to inquire
Product test data

100V/60Hz	Fast	fast (Hot)	Middle	Middle (Hot)	Slow	Slow (Hot)	Remarks
Electric current ( mA )	313	312	273	272	239	237	1)Red is hot data. 2)The temperature rise is 1.06 times of the rated voltage and the test time is 90 minutes. 3)This is the 8 "small desktop fan test data.
Power ( W )	26	25.6	23	22.3	19.8	19
Rotational speed ( RPM)	1381	1368	1198	1179	987	968
Air volume (m/s)	3.5	3.5	3.0	3.0	2.0	2.0
Temperature rise (K )		66

BLQ motor to achieve automatic production, the use of machine winding, wire drop, wire binding, soldering, acceptance, all controlled by computer, from production to acceptance, strict quality control, meticulous, obvious to all
All kinds of High Speed and High Precision stamping equipment in stamping Workshop,Professional equipment operators ensure the normal operation of the equipment and ensure the quality and stability of the products
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

---
