Hcsp Reflective Film Acrylic Road Sign Commercial Grade Reflective Sheeting

Product Description

HCSP Reflective Film Acrylic Road Sign Commercial Grade Reflective Sheeting
Product Brief IntroductionReflective materials, also known as retro-reflective materials, are widely used in various road traffic safety facilities such as traffic signs and markings, protruding road signs, outline signs, traffic cones, anti-collision tubes, as well as car number plates, clothing, shoes and hats, etc. Firefighting, railways, water transportation, mining areas, etc., can be divided into reflective materials for traffic signs, reflective materials for road markings, protruding road signs, outline signs, reflective materials for clothing, etc.

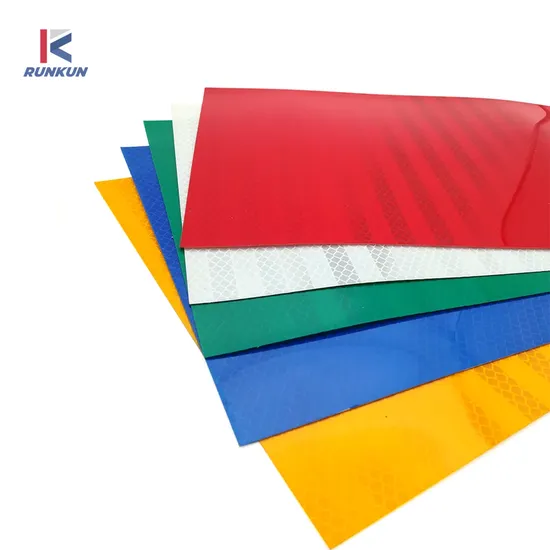

Micro-prismatic reflective sheeting
Micro-prismatic reflective sheeting is made based on the principle of refraction and total reflection of cubic cone, the reflective rate is higher than the normal reflective sheeting. With the continuous improvement of vehicle speed and the complexity of road conditions, the application market of micro prism reflective sheeting will be more and more broad. The signs can be clearly seen in foggy, rainy, snowy weather and at night.Product Parameters

Product Name	Micro-prismatic reflective sheeting/film
Type	Advertisement Reflective Sheeting, Prismatic Reflective Sheeting, Reflective Sheeting
Material	PET/PC/PMMA
Reflective Grade	Diamond grade, EGP, HIP, Engineering grade..
Normal Size	1.22*45.7m, 0.6*45.7m (Support customized specification)
Adhesive Type	Pressure sensitive adhesive
Characteristics	1. Pressure sensitive adhesive2. Easy operation3. Eco-friendly4. High Visibility5. Waterproof6. Good flexibility, tearable (without PET surface type)7.Weathering resistance8. Durable, dirt and aging
Application	1. Safety signs and markings for traffic and vehicles.2. Markings of driveway entrances, mailboxes, building corners an so on.
Customized	Available (Size / Color / Printing)
Weight	GW: 13.25-20.5KG NW:12.25-19.5KG
Color	White, yellow, red, green, blue, orange, fluorescent yellow etc
Reflectivity	About 350cd/lux.m2 of white color
Suitable film layer	Aluminum, steel
Adhensive type	Permanent pressure sensitive
Printing method	screen printing inks special for reflective material is recommended.
Service life	7-10 Years
Sample	Free samples,freight cost paid by customers
Lead time	7-15 days more or less, based on your quantities
Packing	1roll/carton

Benefits
• Reliable and proven prismatic retroreflective technology
• Better daytime and nighttime brightness than standard
• Engineer Grade with beaded optics
• Performance life of five years
• Solventless manufacturing process, significantly reducing
• Vivid daytime colors
• PET Economic choice
Details and Application
1
COMMERCIALGRADE ADHESIVE
* No wrinkle
* No falling off
* High temperature resistance
* Severe cold resistance2
CAN BE DIGITALLY PRINTED AND ENGRAVED
Reflective film digital printingtechnology
Automatic precision cutting technology
Ink protection and durability extension technology
Application:Application: Reflective film mainly plays a warning and reminder role, can be widely used in public security traffic, traffic supervision, fire protection, railway, coal mine, sports venues and other pavement tips, warning information and guide information.
REFLECTIVE MATERIALS WE USE
OUALITY ASSURANCEDiamond Grade Reflective Sheeting (DG3)
- Compliant with ASTM D4956 Type XI
Diamond Grade DG3. A microprismatic sheeting very similar to Types Vll-IX, but providing high retroreflectivity at both shallow and wide angles. Generally regarded to have a ten to twelve year service life. High Intensity Prismatic Reflective Sheeting (HIP)
- Compliant with ASTM D4956 Type IV
A multi-layer sheeting, except that the reflective layeris made of microscopic cube-corner reflectors instead of glass beads - known as a "microprismatic" layer.It can be distinguished by a pattern of small squares or bars superimposed upon the lattice grid. Generally regarded to have a ten year service life. Engineer Grade Prismatic Reflective Sheeting(EGP)
- Compliant with ASTM D4956 Type I
Robust design aids hand application to large substrate sheets Reliable performance of polycarbonate cubecorners Meets and exceeds ASTM D4956 Type I specification Better daytime and night time brightness than engineer grade with glass bead optics Performance life of seven years.Fluorescent Orange/Yellow Reflective Sheeting
- Compliant with ASTM D4956 Type VIll, VIl, X
Highly visible at wide angles in the daytime, twilight,inclement weather and at night For production of highly visible work zone signs Impact and gouge resistant May be applied to several different substrates such as aluminum, medium and high density plywood, and reinforced plastic (FRP) substrates General Performance Considerations
Minimum coefficient of retroreflection, chromaticity limits, and daytime luminance factor (Y%) for the engineer grade prismatic sheeting series 3430 are given in Table A and Table B, respectively as following:
Table A - Minimum Coefficient of Retroreflection
Candelas/Foot Candle/Square Foot
Candelas/Lux/Square Meter

Obs. Angle'	Ent.Angle²	White	Yellow	Red	Green	Blue	Brown
0.2	-4	70	50	14.5	9.0	4.0	2.0
0.2	+30	30	22	6.0	3.5	1.7	1.0
0.5	-4	30	25	7.5	4.5	2.0	1.0
0.5	+30	15	13	3.0	2.2	0.8	0.5

Reflectivity conforms to ASTM D 4956.
Observation Angle -- The angle between the illumination axis and the observation axis.
Entrance Angle -- The angle from the illumination axis to the retroreflector axis. The retroreflector axis is an axis perpendicular to the retroreflective surface.
Table B - CIE Chromaticity Coordinate Limits

Color	x	y	x	y	x	y	x	y	Reflectance Limit (Y)
									Min	Max
White	.303	.300	.368	.366	.340	.393	.274	.329	27.0
Yellow	.498	.412	.557	.442	.479	.520	.438	.472	15.0	45.0
Red	.648	.351	.735	.265	.629	.281	.565	.346	2.5	12.0
Green	.140	.035	.244	.210	.190	.255	.065	.216	1.0	10.0
Blue	.026	.399	.166	.364	.286	.446	.207	.771	3.5	9.0
Brown	.430	.340	.610	.390	.550	.450	.430	.390	4.0	9.0

Company Profile
Xuzhou RunKun Aluminum Co., Ltd. is a professional importing and exporting company that is concerned with the design, development and sales of aluminum products, equipments, consulting etc..And we are a supplier of high-end materials with our own factory. We have 16 casting processing production lines, 3 continuous casting processing production lines, 1 DC processing production line, 12 cutting machines, 5 slitting machines, 5 tensioning machine, 20 annealing furnaces, 10 punching machines. The main products are aluminum circle, strip, profile, lampshade, traffic signs, embossed plate, bar,tube, etc. The annual output is more than 300,000 tons.
Our Advantages:
* Covering an area of 100,000 square meters, more than 100 employees, with professional technical team
* More than 50 sets of modern production processing equipments, testing equipments, CNC equipments
* An annual sales figure that exceeds USD 5,000,000
* The annual output is more than 300,000 tons
* Quality assurance,products go through multiple quality inspection before leaving the factory
Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Germany, Italy, Saudi, UAE,Turkey, Malaysia, India, Canada and Australia. The company Committed to creating a safe, reliable and secure international aluminum plate trading and service platform, providing high-quality products and perfect services to global customers.
Production Process
Our Advantages
Packaging & Shipping
Payment Method
FAQ
Q1: Are you trading company or manufacturer?
A: We are a professional aluminum trading company and have our own factory, which can solve any aluminum related needs for you.
Q2: How long is your delivery time?
A: About 15-20 days.
Q3: What's your payment term?
A: Down payments 50% TT and 50% of the balance payment shall be paid before delivery.
Q4: Do you provide samples ? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q5: Can you accept customize?
A: Yes. It can be customized as per the customers' request.
Q6: How to ensure the quality?
A: All our products have undergone strict quality inspection before packing, and unqualified products will be eliminated. We can accept the third party inspection.
Q7:Can you provide the product catalog?
A:Yes , we can send you a product catalog in form of word/PDF attached by Email.
Q8: How can I get your quotation as soon as possible?
A: The email will be checked within 24 hours,meanwhile, the Skype, Wechat and Whatsapp will be online in 24 hours. Please provide order information(total tons) and specification(the grade, width, thickness,diameter),we will work out a bestprice soon.

---
