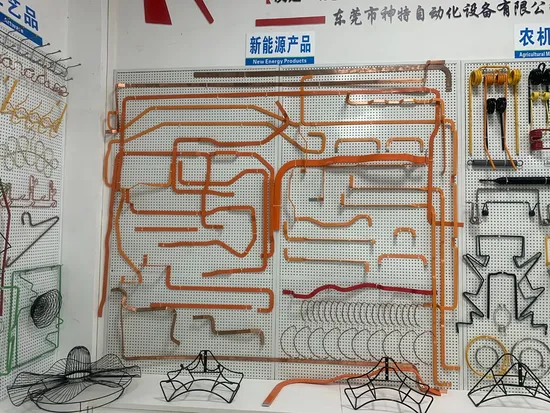

New Energy Copper Bar Forming Equipment with Good Performance

Product Description

Might & Joint Spring Machinery--Professional for Camless CNC Spring Machine over 20 years, the leader for Camless CNC Spring Machine Industry. Company Profile:Might & Joint (Dongguan Might Precision Machinery Co., Ltd) is professional in researching, developing, manufacturing and selling Camless CNC spring machine. Its current leading products including CNC Versatile Spring Forming Machine & CNC Compression Spring Machine &Automatic 3D/2D Wire Bending machine, the wire size covers 0.15mm to 20.0mm.
Product Specification:
1. Camless spring forming machine ST55-12R combines precision CNC controlled servo-motion system and conveniences of mechanization.
2. It is suitable for various kinds of spring products through a simplified setup and programming procedure.
3. It is equipped with seven slights ,one free arm ,wire feeding ,quotation rotation.
4. We design tools for individual purposes such as bending, coiling, pitching, forming, and cutting.
5. Working spaces and angles are considered very carefully to develop portable tool holders for straight movement or supporting movement from other slides.
6. It can make various kinds of spring from wire diameter 1.2mm to 5.5mm.

Model	ST55-12R
Min Wire Feeding Value	0.01MM
Axes Number	12 (can be added to 16)
Max wire Feeding Value	10000.00MM
Wire size range	1.2-5.5mm
Max Wire Feeding Speed	120M/Min
Max. Feeding length	unlimited
Total output power of servo motors	22.9KW
Input Power Supply	380V/50HZ/3PH
Control System	self developed system
Probe No.	3
Net Length	2650MM
Net Width	1900MM
Net Height	2070MM
Net Weight	4500KGS

---
