1*19 Stainless Steel Wire Rope in Metal Wire AISI304

Product Description

Specification for 1*19 stainless steel aircraft cable/wire rope

Con.str	Diameters (inch)	Appro weight.	MIL-W-83410D
		Lbs/100 ft	Mill. Breaking Load(Lbs)
			AISI304	Galvanized
1*19	1/32	0.25	185	185
	3/64	0.55	375	375
	1/16	0.85	500	500
	5/64	1.40	800	800
	3/32	2.00	1200	1200
	1/8	3.50	2100	2100
	9/64	4.50	2820	2820
	5/32	5.50	3300	3300
	3/16	7.70	4700	4700
	1/4	13.50	8200	8200
	9/32	17.00	10300	10300
	5/16	21.00	12500	12500
	3/8	30.40	17500	17500

Quality assure of stainless steel aircraft cable/ wire rope:
1),Basic guarantee:
Raw material guarantee,we use the Tsingshan Brand raw material,the quality is good,adding we use the spectrum direct-reading test,our professional workers &equipments,we could guarantee the tubes is right of the clients' needs.
2),Process control:follow the process chart adding our workers' care
3),Inspection& Test
Direct-reading Spectrum Instrument analytic for chemical composition, Yield Strength, Tensile Strength, Elongation, Hardness Test, Flattening Test, Flaring Test, Eddy Current Test, Ultrasonic Test, Hydrostatic Test, Corrosion Test, etc.
Parts of stainless steel rope workshop:

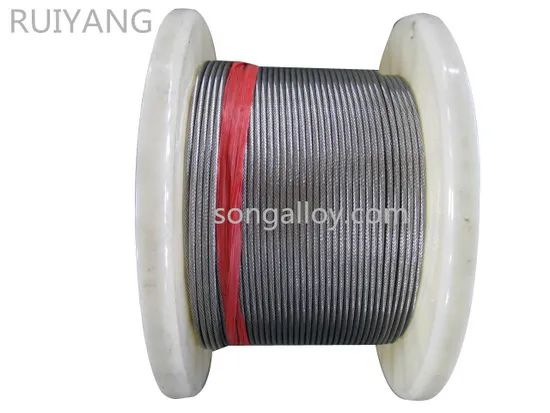

Package & shipping of stainless steel rope

Material	Stainless steel 304 / 304L / 316 / 316L
Brand name	ruiyang
Construction	1 x7,1 x19,1 x37,7 x7,7 x19,6 x19S/W+IWRC,6 x36SW+IWRC,19 x7 etc.
Packaging	pvc or wooden reel, pallets, wooden box or customized
	wooden or plastic spools and craft paper (inner)
	stong wooden pallet or according to request(outer)
Standard	DIN , ISO, ASTM ,BS, JIS, NBR, GB, etc
Tensile strength	1470MPa/1570MPa/1670MPa
Main application	lifting, fixing, cableway, hanging,supporting, refloatation. haulage,

Should you are interested in our products, take action to buy or wholesale the quality large diameter wall thick stainless steel seamless rould pipes for sale in stock from our factory. Shaanxi Ruiyang, as one of the leading manufacturers and suppliers in China, has various sizes of products with competitive price at your choice.

---
