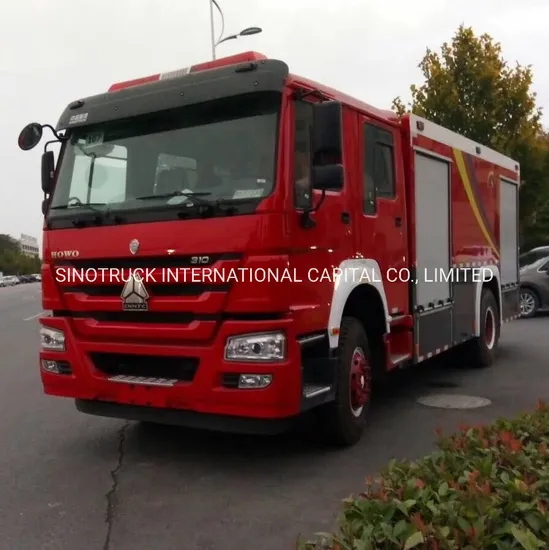

SINOTRUK HOWO Special Water and Foam Tank Fire Fighting Rescue Truck Product Description
| Item | Unit | Description |
| Model | | Fire Fighting Truck |
| Dimension | mm | 8200*2550*350 |
| Tank Dimension | m3 | Water Tank | Foam Tank |
| 4 | 2 |
| Material | Stainless steel | Stainless steel |
| Curb Weight | kg | 9605 |
| Wheel Base | mm | 4500 |
| F/R track base | mm | 1960 / 1855 |
| F/R Axled-Load | Kg | 6300 / 13000 |
| Approach/Departure angle | . | 21/13 |
| Traction system | Type | 4*2 |
| Max speed | Km/h | 90 |
| Tire Specification/Number | Type | 12.00R20, 6+1 PCS |
| Engine | Model | WD615.87 |
| Emission/Kw | 9.726L, 213 Kw / 2200 r |
| Horse Power | 290 Hp |
| Type | Diesel, 6 cylinder, turbocharge, water cooling |
| Brand | SINOTRUK |
| Gear box | model | 10F&2R, Manual |
| Electronic | V | 24 |
| Cab | Person | 6 |
| Type | Reversable, Manual |
| Installing | Mp3 , Radio, Speaker |
| Air Conditioner | Hot wind / Cooling wind |
| Fire Cannon Specification on the top fo fire truck |
| Fire Cannon model | PS 30, water | Working Range | Water >50 m |
| Foam type, Optional Item |
| PP 24, mulity | Working Range | Foam >40 m |
| Working angle | - 30 ~ 80 | Operation | Mannual |
| working pressure | 1~4 Mpa |
| Flowing Speed | <50 L / s |
| Fire Pump Specification |
| Fire Pump model | CB10/40 |
| Flowing Speed | 40L/s | Pressure | 1.0 Mpa |
| Water input Port | DN 135mm x 1 | Water suction pipe | 8 m, one Unit |
| Liquid Output Port | DN 80mm x 2 , with ball valve control |
| Liquid Output Port | DN 65mm x 2, with ball valve control |
| Outside water input port |
| Liqid input Port | DN 65 x 2 Unit, at two side of fire truck |
| Foam Tank Specifiation For Option |
| 2000 liter, pipe and valve are all stainless steel material |
| Installing |
| Long beem alarm light, light detector x2~12V60W, 5 Unit Window type warehous, Rear climp ladder |
| |
| Spare List |
| Fire Pipe | DN 65 x 8 Unit | Fire Pipe | DN 80 x 4 Unit |
| Fire Pipe Length | 20 m |
| Fire pipe protector | 4 | Fire Pipe storage | 1 |
| Fire Pipe Hocker | 4 | Fire extinguisher | 1 |
| Fire bucket | 1 | Fir axe | 1 |
| Fire Crowbars | 1 | Iron collars | 1 |
| Liquid port Connector | 5 Unit, Y type, U type, X Type |
| Fire spanner | 2 Unit, Above ground fire hydrant, undergound hydrant. |
| Spanner | 2 Unit, for sunction pipe |
| Fire cannon | 3 Unit, two for water, one for foam ( Optional) |
| |
| Option Item | Fire cloth, addtion foldable stainless steel ladder, safety cabline. |
A:30% advance payment after signed the contract, 70% balance should be paid before delivery. We can accept T/T and L/C
2. Delivery time:
A:25-45 working days after payment is received. According to different trucks models
3. How about your product quality?
A: The products have passed the ISO, CCC, SGS, BV, and CONTECNA qualification certification. All our spare parts are from the original manufacturers with original part number and and anti-fake label, the quality is 100% guaranteed.
4: How long is the warranty period?A:The warranty of our products is 1 year or 50000km, which comes first
