Sdlg 9t-E690f Chinese Crawler Excavator for Municipal Administration

Product Description

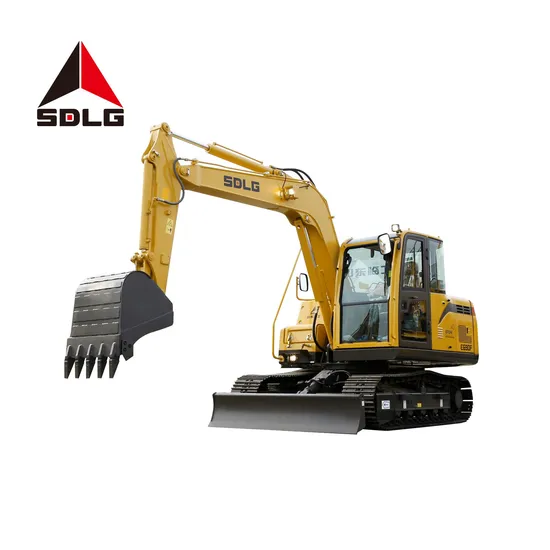

Sdlg 9t-E690f Chinese Crawler Excavator for municipal administration
E690F is a 9-ton multi-working small excavator. Mainly engaged in the excavation, loading and unloading of materials such as soil, sand, coal, garbage and other materials, crushing, and leveling operations. It is widely used in mines, construction sites, underground mining, gardens, municipal administration and urban construction.
1. The original imported Yanmar 4TNV98T turbocharged engine meets the T3 emission requirements. It has strong power, high reliability, automatic idling function, low emission, low noise and low fuel consumption.
2. Load sensing hydraulic system, pilot control, high efficiency and energy saving, light operation, better coordination of compound actions.
3. It adopts reinforced upper and lower frame, with strong carrying capacity, reasonable load distribution of the whole machine, and good stability. X-type off-frame, high stability of the whole machine; standard enhanced working device, the whole machine has a strong ability to adapt to harsh working conditions.
4. Optimized design of the cab, spacious and bright, wide vision, good sealing effect, high-end shock-absorbing seats, dual-stage filter heating and cooling air-conditioning, silicone oil rubber three-stage shock absorber, good shock absorption effect, comfortable driving environment.
5. The electrical system of the whole machine adopts centralized control, which has high reliability and convenient maintenance and inspection; the intelligent monitoring system can monitor the working status of the whole machine in real time, and has good man-machine interaction.
6. It can realize quick change and a variety of accessory configurations, and try to meet the needs of users with one machine and multiple working conditions.

Overall dimension
Overall width of upper assembly(A)	2255mm
Overall width(B)	2265mm
Overall height of cab(C)	2600mm
Tail swing radius(D)	1895mm
Overall height of engine hood(E)	1790mm
Ground clearance of counterweight (F)	800mm
Wheelbase (G)	2220mm
Crawler length (H)	2870mm
Crawler gauge (I)	1780mm
Crawler pad width (J)	450mm
Min. ground clearance (K)	400mm
Overall length (L)	6340mm
Overall height of boom (M)	2500mm
Overall parameters
Bucket capacity	0.32m³
Overall operating weight	8550kg
Max. excavation force	60KN
Slew speed	0-12r/min
Traveling speed (low/high)	2.6/5.0km/h
Average ground pressure	33.3kPa
Max. digging radius	6330mm
Max. digging depth	4160mm
Max. digging height	7216mm
Max. dumping height	5010mm
Min. front slewing radius	1760mm
Engine
Model	YANMAR 4TNV98T-ZCSLGC
Type	Water-cooled, Four-stroke, inline turbocharged
Rated Power@Revolution Speed	54.1kw/2200r/min
Displacement	3319mL
Cylinder bore × stroke	98×110mm
Emission standard	GB20891-2014 China Phase III
Rated fuel consumption	218g/kw.h
Max. torque	272.3-297.7N.m
Traveling/swing system
Qty. of carrier rollers (single side)	1
Qty. of track rollers (single side)	5
Traveling brake type	Wet disc brake
Swing mode	Hydraulic drive internal tooth single-row ball-bearing
Swing brake type	Wet disc brake
Hydraulic system
Hydraulic control type	Pilot proportional control valve
Hydraulic system type	Load sensing control system
Max. flow	160L/min
Main pump model	HP3V80
Operating pressure	265kgf/cm2
Main valve model	HVS18+
Fill capacity
Fuel	135L
Engine oil	11.2L
Hydraulic oil	174L

---
