Uniform Saline Injection Machine with Bone Injection

Product Description

Our Advantages
Product Description

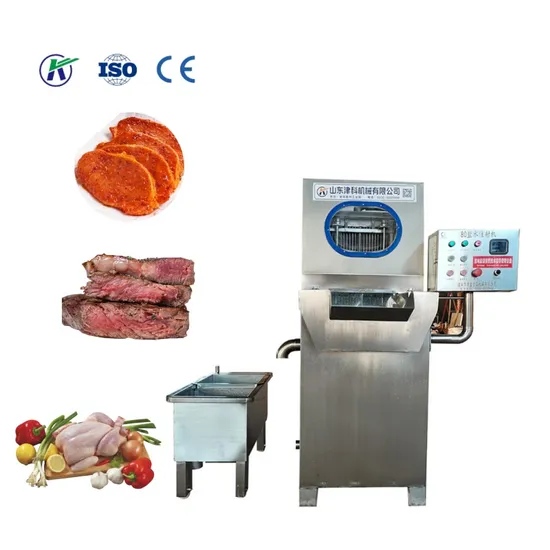

Saline injection machine
The automatic brine injection machine is to inject water, starch and other curing liquid into the meat to fully marinate, which can tenderize and soften the meat, improve the taste and yield of meat products, shorten the curing time, and improve production efficiency.Saline injection machine is equipped with automatic protection device, when the injection needle touches the bone and other hard objects can be lifted, not damaged, according to different process requirements, adjust the stepping speed, stepping distance, pressure meat plate gap and injection pressure, the curing liquid evenly and continuously injected into the meat, to achieve the ideal injection effect Detailed Photos
Product display
Product advantage 1. It adopts PLC programmable control system and large windows touch screen to control,easy to operation.
2.Initiative transmission adpots international advanced AC speed regulating technique,with small startup current and well startup behavior,injecting time is stepless speed adjustment.
3. The water tank adopts tertiary filtration system and match with mixing system to make material mixing uniformly and reach well injection effect.
4. The injecion pump is German stainless steel injection pump,with fast injection speed and high injection rate,meet the HACCP standard.
5. It have pneumatic device to make needle clean,easy to operate and clean.
6. It adopts advanced servo conveyor belt transmission system,servo motor accurate and fast driving to make material move to position fast and accurate,the step accuracy is 0.1mm,and make injection uniformity.We design a fast-remove handle to make the conveyor belt easy to remove and clean.
Product application
Product Parameters
Technical parameters of saline injection machine

model number	48 needle	60 needle	80 needle	108 needle (For fish)	120 needle	189 needle
production capacity (kg/h)	200	300	500	600	700	800
total power(kw)	2.6/2.35	2.6/2.35	4.5/4.8	4.5/4.8	4.5/5.2	5.2/5.2
Injection rate (Times /min)	13-66	13-66	13-66	13-66	13-66	13-66
Main engine size (L*W*H)mm	1350*600*1750	1350*600*1750	1390*770*1750	1390*770*1750	1620*950*1750
stepping rate(m/min)	40-70	40-70	40-70	40-70	40-70	40-70
injection pressure (Mpa)	0.1-0.8	0.1-0.8	0.1-0.8	0.1-0.8	0.1-0.8	0.1-0.8
total weight(Kg)	330	350	400	400	450	550
kind of drive	Two-stage speed change	infinitely variable speeds	infinitely variable speeds	infinitely variable speeds	infinitely variable speeds	infinitely variable speeds

Certifications
Packaging & Shipping
Company Profile
Shandong Zeko Machinery Co., Ltd. is a global supplier of meat processing machine and fruit and vegetable equipment. The company focuses on the research and development,manufacturing and sales of meat bowl chopper, air bubble washing machine, vacuum packaging machine, frozen meat grinder, meat stuffing mixing machine, sausage machine, fruit and vegetable washing machine,vacuum meat tumbler machine, meat ball machine and so on, the company also provides customers with a full set of solutions.
Our customers
After Sales Service
After-sales service
1.One year warranty
The company has a one-year warranty and lifetime service system for its products.
2.About the equipment
If the device fails or encounters difficulties during use, read the product manual as reference.
3.About service
If the device fails and cannot resolve itself, please contact us in time and we will provide you with remote video guidance and professional technical support.

---
