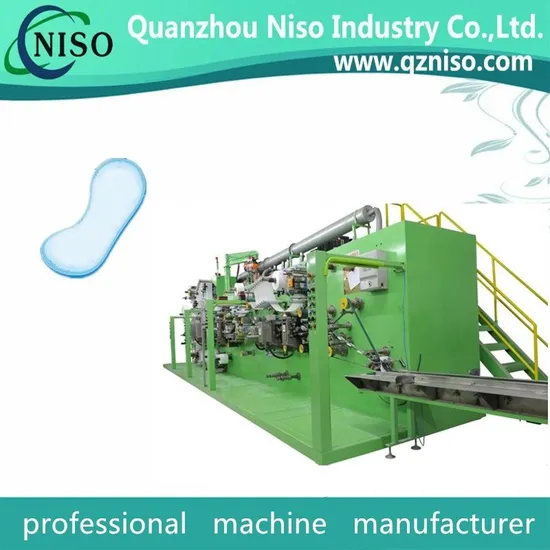

Panty Liners Pantiliners Incontinence Liner Making Machine

Product Description

Panty Liners Pantiliners Incontinence Liner Making Machine
Four kinds of pantiliner machine for you to choose

part 1: parameter
	stepping motor control machine	variable frequency motor control machine	semi-servo motor control machine	full-servo motor control machine
automaticity	semi-automatic	full-automatic	full-automatic	full-automatic
Design Speed	600 pcs/min	1,000 pcs/min	1,000 pcs/min	1,200 pcs/min
stable production speed	400-500pcs/min	700-800pcs/min	700-800pcs/min	900-1000pcs/min
power	80kw	100kw	100kw	120kw
Efficiency rate	>=85%	>=88%	>=88%	>=88%
Rejection rate	<= 3%	<= 2%	<= 2%	<= 2%
Machine weight	35 Ton	45 Ton	45 Ton	45 Ton
Machine size	18m * 3m * 3m	20m * 3m * 3m	20m * 3m * 3m	20m * 3m * 3m
Operating size	21m * 3m * 3m	23m * 7m * 5m	23m * 7m * 5m	23m * 7m * 5m
safe door	Back	Back & Front	Back & Front	Back & Front
Air pressure	0.6-0.8MPA
color	Customlized
Machine direction	Customlized
Part 2 Electric part
Programmable Logic Controller (PLC)	×	Mitsubishi/Simense	Mitsubishi/Simense	Mitsubishi/Simense
Touch screen control	×	Mitsubishi/Simense	Mitsubishi/Simense	Mitsubishi/Simense
Unwinding of the raw material	Mechanical	Initiative	Initiative	Initiative
Materials shaft stand	Machanical shaft stand	Pneumatic shaft stand	Pneumatic shaft stand	Pneumatic shaft stand
Tension control system for raw material	×	√	√	√
Unwinding motor	×	variable frequency motor	variable frequency motor	Servo motor
Web guider	Manual	Auto	Auto	Auto
Driving system	One main motor	Three main motors	Servo motor control independently	Servo motor control independently
Materials splicing	Manual	Auto	Auto	Auto
Flat belts	China	Switzerland	Switzerland	Switzerland
Timing belts	China	USA	USA	USA
Bearing	China	Japan	Japan	Japan

remark:
1. the product of the machine: thin(the raw material use SAP papaer)/ thick (the raw material use fluff ).
2. whether the product with wings or not? it is optional
3. all the unwinding of the raw material are automatical and initiative except the unwinding of easy tape & wings release paper is mechanical. Because, It is no need to use Initiative unwinding.
4. it seems that the variable frequency motor control machine and semi-servo motor control machine share very similar parameter, why should buyers choose expensive semi-servo motor control machine? Because, I will be much easier and cost less once the baby diaper manufaturer want to change the size of the product. if you buy a
semi-servo motor control machine, you just need to change cutter instead of change all the transfer part of the cutter.
Why Choose Our full Servo Machine?

1. the whole machine is drived by servo motors, which can control the drive system more accurately.

2. three folding easy packing

3. Unwinding is controlled by constant tension

4. Can change raw material without reducing the speed

5. Equipped with pneumatic shaft, easy to change raw material

6. Equipped with automatic detecting & rejecting system

7. All the spare and accessory parts are processed by CNC machine

8. Web guiders

9. PLC control system
Our Plant

Frequently Asked Question
Q:Are you a machine manufacture or trading company?
A: We are a machine manufacture of baby diaper machine, adult diaper machine, pull on diaper machine, sanitary napkin machine, panty liner machine,underpad machine, pet pad machine, breast pad machine and Underarm pad machine.

Q: What is the delivery time for a set machine?
A: 120 days as a fastest delivery time. As a manufacture, we need time to make our machine perfect in every taspect.

Q: What is your term of payment?
A:T/T is our first choice, L/C at sight is ok as well.

Q: How long is the warranty period?
A: one year after the testing finished at the buyer's workshop.

Q: Will you send the engineer to install machine and train our workers in our factory
A: of course. We will send engineer to installing and training. But the salary and accommodation of technician will be on the buyer' s side. you can sent your engineers to our
factory for training, we will offer accommodation.
Q: How long can I get the machine?
A:we will begin to make your machine once we receive your 30% down payment.
around 4 month, we will finish the produce and ask the buyer to check the machine and pay for the rest money.
about 10 days for packing the machine, arrangment of shipping and customs clearance.
some days for the shipping and some days for the customs clearance in the buyers country.
Finally, you can get the machine.
Q: Can I buy raw material from your company?
A: yes. we have a trading company, which cooperate with us for many years. we can help you to find raw material.

---
