CNC Bridge Cutting Machine for Counter Top Processing

Product Description

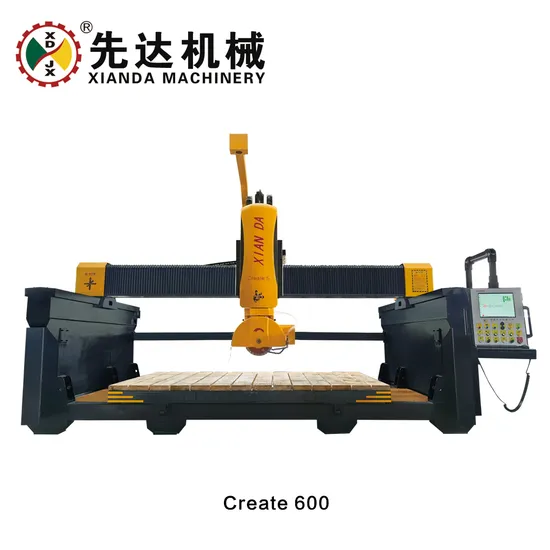

5 Axis CNC Stone Bridge Cutting Machine Create 600
Detailed Photos
Product Description
5 Axis Bridge cutting machine adopts 5 Axis linkage CNC System Control, Bus-based absolute value servo (with memory function for power off), high-precision linear guide rail, ball screw transmission, oil-immersed track structure, with multi-function, high precision, strong stability and other advantages. Its processing functions include: arbitrary-shaped lines, fan-shaped plates,wash basin and special-shaped edge profling, etc. The equipment has multiple processing functions, wide application, small space, and simple operation. It is a great equipment for stone processing.
Product Parameters

Parameter	Unit	Create 5
Blade Diameter	mm	φ350-φ600
Worktable Size	mm	3400*2000
Max Processing Size	mm	3400*2000*180
Table Tilting Degree	°	0°-85°
Head Rotatimg Degree	°	0°-360°
Head Tilting Degree	°	0°-90°
Air Speed	m/min	15
Repeated Accuracy of Positioning	mm	<0.1mm/1000
Main Motor	kw	22
Gross Power	kw	30
Water Consumption	m³/h	3
Outline Dimension	mm	5800*3650*3850
Gross Weight	kg	≈6000

More Product

Middle Block Cutting Machine

Planar Stone Carving Machine

Infrared Bridge Cutting Machine

Block Cutting Machine

Block Dividing Machine

Integrated Bridge Cutting Machine

Company Profile
Fujian Xianda Machinery Co.,Ltd is a leading company for stone cutting machines and toolsin China, established in 1985 and covers 20,000m³ area which located in Jinjiang Wuli lndustrial area, nearby the longest and oldest stone bridge in the world, named "Wuli Bridge" and next to biggest stone market in the world- Shuitou.
With more than 34 years' experience specializing in developing and producing a series of diamond wire saw machine, column processing machine, bridge cutting machine, carving machine, profiling linear machine, baluster machine, etc. We occupied around 80% market in China for column processing machines, and own more than 30 overseas countries users.
Since its foundation in 1985, we keep"Top Technology and Superior Quality"as our standardfor all machines and got CE, ISO Quality Gold Award , etc.
"China Recommend Building Manufacture Enterprise", "3A Enterprise Credit Evalution" , etcfor company.And we are always the sponsor for education as our CEO Mr Roy is enthusiasticabout the public welfare establishments.
Xianda always keep"Creat the highest value of your stone"as purpose,your visiting andcontacting is always welcomed.
Certifications
After Sales Service
* We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.
* After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.
* We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training. FAQ
Q: How to place order to your company?
A: 1. Inquiry-Professional quotation.
2. Confirm the price, lead time, logo, payment term etc.
3. Xianda sales send the Proforma Invoice with seal.
4. Customers make the payment as a deposit and send us Bank receipt.
5. Sales confirm the receipt of down payment . After approval, we will arrange the production & inform the estimated time.
Q: How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery
Q: Are you Manufacturer?
A: Yes,that we are the stone machinery factory for over 30 years.

---
