2 3 Phase Separation Centrifuge Stainless Steel Centrifugal Juice Tubular Bowl Centrifuge Separator

Product Description

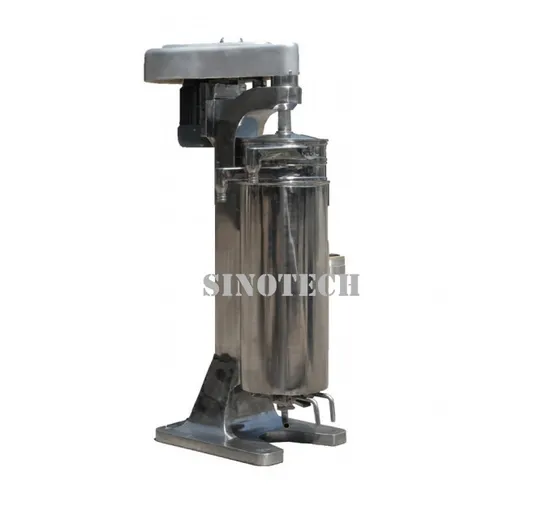

Product Description Tubular centrifuge is a kind of fine separation equipment. It is specialized for solid-liquid separation and liquid-liquid-solid separation for small solid particles and similar specific gravity difference. It is the equipment selected by food, dairy, industrial, chemical, agricultural and biological products industries and so on .
We have two different modes of Tubular Centrifuge, one is Two-phase solid-liquid separation, the other is Three-phase solid-liquid-liquid separation, which can be selected according to your material characteristics and separation requirements. Working Principle The tubular centrifuge is composed of sliding bearing assembly, drum assembly, liquid collecting plate assembly, machine head assembly, body, etc. The power of the motor is transmitted to the belt pulley and the main shaft on the machine head through the belt and pressure pulley, so as to drive the drum to rotate around its own axis at high speed, forming a strong centrifugal force field on the inner wall of the drum. The material is injected into the drum through the bottom feed port, and under the strong centrifugal force, the material liquid is forced to move in layers. The light liquid is in the center of the drum, flows to the upper part of the drum, and is recovered through the liquid collecting tray; the heavy solid is thrown on the inner wall of the drum, and is manually discharged after shutdown. Technical parameter

Model Item		GQ(F)45A	GQ75A	GF(Q)105A	GQY125A	GQ150A
		GQ(F)45J	GQ75J	GF(Q)105J	GQY125J	GQ150J
Bowl	Diameter(mm)	45	75	105	125	142
	Effective height(mm)	280	430	730	735	700
	Sedimentation volume(L)	0.45	2	5.5	7.4	10
	Speed (r/min)	0-28000	20000	16000	15000	14000
	Max separation factor	0-19800	16770	15025	15500	15570
Feed nozzle diameter(mm)		2.3	2.3.5	4.6.8.10	6.8.10	6.8.10
Feed inlet pressure(Mpa)		>0.05	>0.05	>0.05	>0.05	>0.05
Throughtput(kg/h)		≈100	≈500	≈1200	≈2000	≈3000
Motor	Model	Series machine	Y90S-2	Y90S-2	Y90L-2	Y100L-2
	Power(kw)	0.6	1.5	2.2	3.0	3.0
	Speed (r/min)	0~4500	2840	2880	2880	2880
Size (L×W×H)(mm)		580×650×750	800×400×1200	800×700×1400	850×500×1600	800×700×1600
Weight(kg)		120	300	400	610	610

Structure and principle:
The separator consists of machine body, driving part ,bowl, liquid collecting pan and liquid-in bearing seat etc.
The material is sprayed onto the bowl from the inlet on the bottom and strong centrifuge force is formed when the bowl rotates with the material and that makes the material flow upper along the wall of the bowl and then separated because of the different gravity by the centrifugal force.
GF-for separation: Heavy liquid forms outer ring and light liquid forms inner ring. They flow to the top of the bowl and discharge from their respective outlet. And the little solid is settled on the wall of the bowl and discharged manually after the machine stops.
GQ-for clarification: Heavy solid is deposited on the inner wall of the bowl,and forms the sludge. And it will be discharged by manual after the machine stops. The clear liquid flows out of outlet from the top of the bowl. It is mainly used for separating all kinds of suspension difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases.
The motor connect with the big pulley and delivery the power to the spindle through the belt, tensioner and small pulley and rotate with the bowl in high-speed as the clockwise.
The high speed tubular centrifuge is mainly used in liquid-solid separation, liquid-liquid-solid separation in bio-pharmacy, beverage, chemical industry. It is an ideal separation equipment by centrifuging, especially for those feeding with little gravity difference, and small dimension in diameter.
Principle application
(1)Clarifying process for liquid solid product(oral liquid)
(2) Extraction of protein,seaweed and jelly(plant extraction,herb extraction,pigment extraction)
(3) Refined molasses
(4) Separation of blood
(5) Settlement of bacteria (yeast, E.coli, lactobacillus, bacillus subtilis, nitrobacter etc)
(6) Purifying paint, dye, various resin.
(7) Oil separation(vegetable oil degumming,de-soap,dewater, oil and water separation etc)
(8) Processing of granular, crystalline and fibrous suspensions
(9) Separation of filterable and non-filterable sludge.
FAQ: Q1: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by buyer.
In order to save your cost, we will send you videos of full details within machine installation and help you from the beginning to the end.

Q2. How can we make sure about the machine quality after placing the order?
Before delivery, we will send you the pictures and videos for you to check the machine quality.
And also you can arrange for quality checking by yourself or by your contacts in China.

Q3. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate.

Q4. Can you explain me the whole transaction process ?
1.Sign the Contact
2.Arrange 30% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.

Q5: Will you provides the delivery service?
A: Yes. Please offer us your final destination, we will check with our shipping agent to quote the shipping cost for your reference before you make a decision.

More questions, could you pls feel free to find us at any time!

---
