Professional Conventioanl Horizontal Lathe for Facing Turning 3000 mm Flange

Product Description

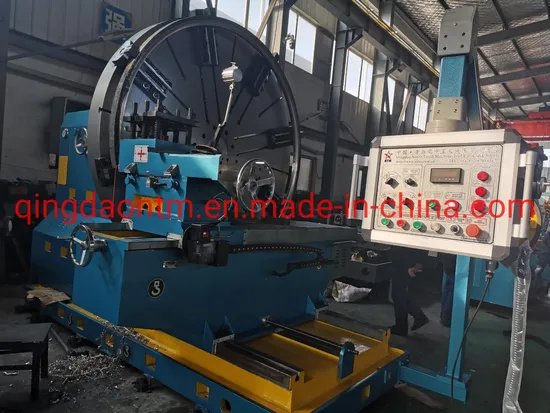

High Quality Horizontal Conventional Facing Lathe Machine
For Turning Gear, Turbine Parts,Wheel,Turbine Parts,Tube Plate,Tire Mold,Wheel Hub Turbine, Flange,Oil Pan,Shaft,etc

Special Characteristics of Horizontal Lathe Machine
More than 50 years' experience in machinery industry since 1960s.
Manual Control,FANUC ,SIMENS or Chinese Brand system (Optional)
Base adopts triangular guide design
Reasonable structure
High performance with low cost
Maximize Customer's Profitability under the minimum invest cost compared with other competitors.
Application: The base guide of floor-type lathe adopts rectangular structure, which ensures a large span and high rigidity. It is very suitable for low speed and high load cuttings. This machine has a high carrying capacity, high rigidity, optimal appearance design and easy operation. It is widely used for machining neutral parts with large diameter, such as tire mold, large flange tube plate, turbine parts, end enclosure, etc. It is also extensively applicable for manufacturing the parts of chemical industry, heavy machinery, mining and railways equipments and aviation industry.
2. Technical Parameters of horizontal lathe machine

Name		CX6010	CX6012	CX6016	CX6020	CX6025	CX6025	CX6030	CX6036
Item	Unit
Max. Swing Diameter	mm	1000	1200	1600	2000	2500	2500	3000	3600
Max. Weight of work-piece	T	1	1	2	2	3	2	5	5
Max. Length of work-piece	mm	400	400	400	600	600	600	600	500
Range of Spindle Speed	r/min	16-128	16-128	16-128	12-94	12-94	12-94	4-40	4-40
Chuck Diameter	mm	800	1000	1400	1600	2000	2000	2500	3000
Horizontal Stroke	mm	320	320	320	320	320	320	320	320
Longitudinal Stroke	mm	500	600	800	900	1250	900	1500	1800
Main Motor Power	Kw	7.5	7.5	11	15	15	15	22	30

Remarks: The above technical parameters are the standard configuration, we can also re-design and manufacture customized Lathe Machine per your special request and demands.
3.After -sale service and maintenance of horizontal lathe
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
For more details, please feel free to contact us. Thanks!

---
