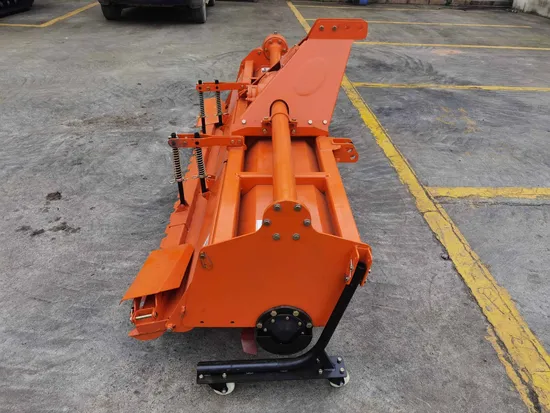

1gq230 Rotary Cultivator Tiller Implement

Product Description

FEATURES

This series heavy-duty rotary tiller is with side gear transmission, it can be mounted with various types tractor; The Rotary cultivator is a through shaft and without intermediately leaking plowing and grass hanging problem;
Big noodular cast iron gearbox is high strength, and with viewing oil hole for convenient maintenance;
S-streamline pallet is with high strength, to improve the surface flatness and better compaction after tillage; Spring rack system is anti-tipping, the effect is more fine soil particles and more plain.
It is good performance and suitable for dry land and paddy field.

SPECIFICATIONS

ITEM		PARAMETER
Product		1GQ230 ROTARY CULTIVATOR
Overall Dimension Length×Width×Heights ( mm ):		920 × 3100 × 900
Weight (kg)		436
Productivity of Operating Hours(hm²/h):		0.19 min
Power Source	Mounted with	Wheel Tractor, Crawler Tractor
	Matched Power ( kw/hp )	50KW ~ 80KW
	Rear Mounted Implements Type	Three-point Linkage
	PTO Rotating Speed (r/min)	720/540
Driving System	Structure	Frame based
	Driving Type	Side Gear Driving
	Implement Type	Single Shaft
Working Parameter	Working Width	2300
	Working Depth	80~150
	Theoretical Operating Speed ( km/h )	0.27 ~ 0.69
	Knife Axle Rotation Speed	335/251
	Maximum Turning Radius	225
	Type of Kinfe	IT225
	Quantity of Knife	64
