Engineering Installation Road Lamp IP66 120W 180W Outdoor LED Street Light Lighting

Product Description

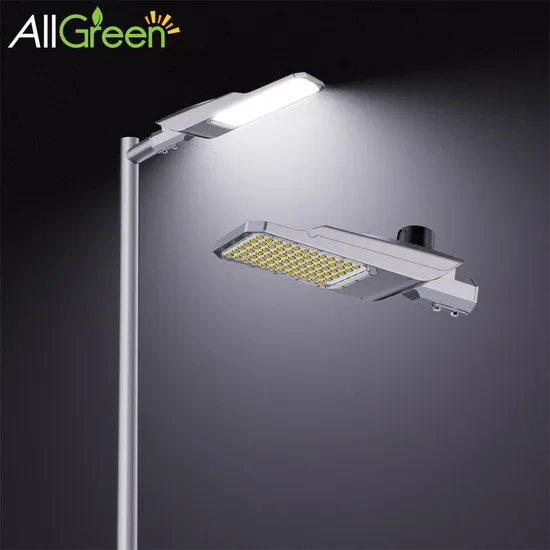

Engineering Installation Dia-Cast Aluminum Road Lamp IP66 Waterproof 120W 180W 240W 300W Grey Outdoor Led Street Light
- Completely independent design, which include the heat sink, PC lens and frame. To make your product more unique and attractive.
- Patented design, unique in China.
- Adopt famous 5050 chip inside, high efficiency can up to 210 lm/w.
- Die-casting housings, streamline heat sink with good heat dissipation.
- Offer 5 years warranty. Price is more competitive than others on the market.
- Short lead time, sample is 3-5 days; Bulk order is 10-15 days based on quantity. To be your firm supporter.
- Support Photocell sensor, Zigbee, solar system and 0-10V dimming, make the lamp smart and more energy saving.

MODEL	AGSL1601	AGSL1602	AGSL1603
System Power	30W - 60W	80W - 120W	120W - 200W
Luminous Flux	4200lm - 7000lm	11200lm - 16800lm	21000lm - 28000lm
Lumen Efficiency	180-200 lm/W
CCT	2700K-6500K
CRI	Ra≥70 (Ra>80 optional)
Beam Angle	Type II-M(CUT-OFF)
Input Voltage	100-240V AC(277-480V AC optional)
Power Factor	≥0.95
Frenquency	50/60 Hz
Surge Protection	6kv line-line, 10kv line-earth
Dimmable	Dimmable(1-10v/Dali /Timer/Photocell)
IP ,IK Rating	IP66, IK09
Opreating Temp	-20ºC -+50ºC
Lifespan	L70≥50000 hours
Warranty	5 Years
Product Dimension	455*190*90mm	533*190*90mm	620*190*90mm
