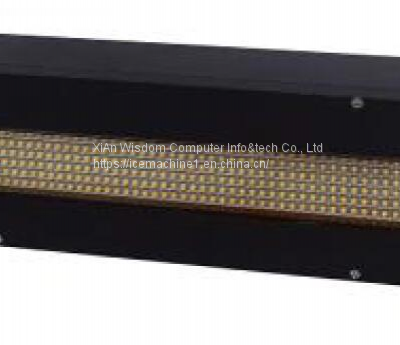

HTLD-S198-150X30-395 UVLED
Htld-s198-150x30-395 is a UV adhesive curing design High performance UVLED surface light source curing system, the system mainly contains control System, UVLED irradiation head, and conveyor belt.UVLED irradiation
The head is integrated with imported high intensity ultraviolet LED, and the wavelength of UV spectrum is395nm, adopting forced air cooling heat dissipation, effective curing area is
150X30mm, support external signal input and trigger, can carry half self Moving or full automatic production line, conveyor belt material teflon, transmission Bandwidth is 300 mm.
Product features
No infrared radiation, cold light source, suitable for curing all kinds of heat sensitive materials.
. Start up without preheating, namely open to use, instantaneous maximum light intensity.
Save electricity, simple and easy to control.
No mercury, no ozone safe and environmental protection
Intelligent infrared sensor control, start and stop control on demand.
The product application
Electronic devices, TP, LCD
Transfer printing, wheel printing
Flexo printing, silk printing
Product specification:
Control system
Panel display, touch operation, real-time monitoring of the working state of the irradiation head
0-100 % adjustable power
. Temperature monitoring
Infrared sensor control, operation mode selection
. Machine size: L1200*W570*H490mm
UVLED irradiation head (htld-s198-150x30-395)
Wavelength: 395nm
. Curing area: 150X30mm
. Irradiation intensity: 1000-6000mw /cm2
Recommended exposure height: 10-20mm
. Overall dimension: L165*W80*H90mm
Electric power:594w
input voltage:220VAC 50Hz
Cool way: Air cooling
service life: more than 10000 hours
Conveyor belt speed is adjustable 1-10m
The lighting height is adjustable 10-100mm
