Wood Package Machine CNC Machine Automatic Pallet Stacker

Product Description

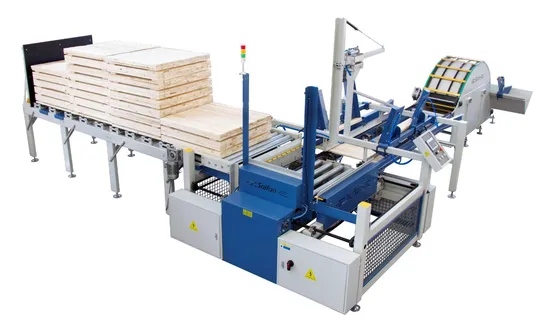

SF8010 automatic pallet wood stacker
Product Description

FEATURES: Stacks up to 8-12 layers per minute, estimate 3-4m3/min. Installs behind notchers, chamfers, trim saws & gang saws, multi rip saws, 4-sides moulders, planers, bandsaw etc. Run your whole line with one operator
INCLUDES: Unscrambler Arrange and stacking Area 4 m Integrated exit conveyor

Item	Min.	Max.	Notes
Wood length	850mm	1500mm	/
Wood width	50mm	200mm	Adjustable
Wood thickness	15mm	100mm	Adjustable
Tie strip thickness	10mm	38mm	Different thickness need to change different spare parts
Tie strip width	25mm	150mm	/
Tie strip length	800mm	1200mm	/
Productivity	3-4m3/min

STACK SIZE

Item	Min.	Max.
Stack height	0mm	1100mm
Stack width	800mm	1200mm
Stack length	800mm	1500mm

OTHER SPECIFICATION

Infeed conveyor height	830-930mm
Power requirements	12kw 380V 3phase 30A (Can customize)
Air requirements	Air flow 10CFM Air pressure 90PSI (0.62Mpa)
Machine space	8700*6700*2730mm
Packing size	5400*2000*2300mm 3300*2000*1700mm 2750*1300*1000mm
Weight	3750kg

Detailed Photos

Related Products

SF1000	Wooden Pallet Production Line
SF2000	Wood Pallet Mat Nailing Machine
SF9022	Wood Pallet Legs Nailing Machine
SF9025	Stringer Wood Pallet Making Machine
SF9010	Stringer Wood Pallet Nailing Machine
SF9026	Stringer Wood Pallet Making Machine
SF7013	Double Heads Notcher
SF7030	Wood Pallet Chamfer Machine
SF7041	Pallet Round Corner Cutter Machine
SF6060	Wood Cross Cut Off Saw
SF6021	Wood Double Heads Trim Saw Machine
SF8005	Multi Heads Trim Saw

Final Product
Company Profile

HICAS group is one leading manufacturing and exporting company of wood working machine in China.
We are committed to provide one-stop service to our customers all over the world.
HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter.
1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box. 3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer and feedback
8.Our company and products have been verified onsite by SGS Group
We are looking for Good customers like you! and Distributor or Agents Wanted!!!
9.We have many CE certifications, EPR certifications, ISO certification and product patents.
10.Our Packaging & Shipping
1>Packing details: Warrping film with plywood box or as your request.
2>Shipping: We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms.
3>Timely delivery and transportation
11.Our after-sale service
1> We respect your feed back after receiving the goods.
2> Tracing the working condition by email per month.
3> 24 hours technical support by email, call, video.
4> English CD and manual for machine using and maintainance.
5> Whole machine one year warranty.
6> Whole life warranty.
7> Engineers available to serve and train overseas, but your side should pay all the expense.
FAQ
1. Do you offer installation?
Video guidance and English manual can be provided freely, and we provide online support, now all our customers install and operate the machine by themselves with our online support.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.

3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.

4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.

5. Do you have any machines in our country?
Our machines have been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.

6. Can you customized the machine?
Our machines can be customized made according to buyers' request.

7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.

8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish.

---
