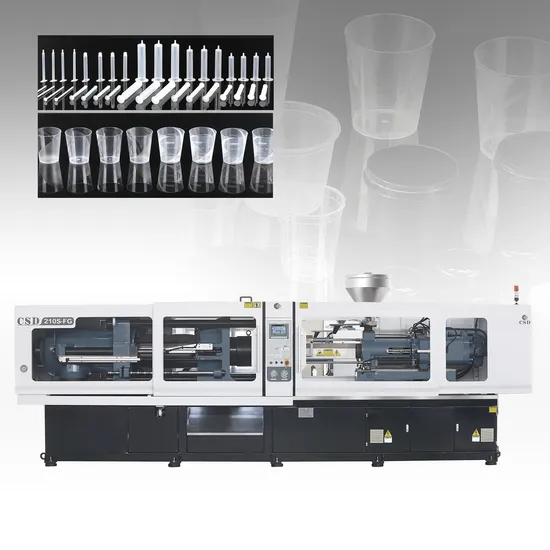

CE Approved with SP Series High Precision & Direct Pressure Injection Molding Machine (50-300T) (CSD-210S-SP)

Product Description

CSD-SP SERIES servo and direct pressure injection molding machine
Advantages:
1. Oil free lubrication mold clamping system, machine running fast and smooth, there is no oil leakage on the surface.
2. Liquid filling type and large diameter hydraulic cylinder, center direct clamping, the template deformation is less than 0.05%.
3. Combind pressure holding system, maitain clamping pressure consistent.
4. Double differential cylinder, symmetric fast moving mold auxiliary mechanism, advanced synchronous mechanism, mold plate running fast and smoothly, maximise the mold open and close speed.
5. Large mold thickness, compact overall optimization design, mold open stroke increased, suitable for much longer product.
6. Single cylinder injection system, uniform stress, fast response speed, decreased energy consumption, improving the production stability of precision products.
7. Servo control, double closed loop control, significant effect on energy saving, reduce system heat and decrease the noise.

			CSD-50-SP		CSD-90-SP		CSD-130-SP		CSD-170-SP		CSD-210-SP		CSD-250-SP		CSD-300-SP
			A	B	A	B	A	B	A	B	A	B	A	B	A	B
injection part	SCREW DIMETER	mm	30	32	35	37	37	40	40	46	50	55	56	62	60	65
	SCREW L/D RATIO	L/D	21	19.7	20.8	19.7	22.2	20	22.3	20	22	20	22	20	22	20
	SHOT VOLUME(THEORETICAL)	cm³	92	103	150	168	206	241	283	374	471	570	662	812	882	1035
	SHOT WEIGHT	g	84	94	137	153	188	219	258	340	429	518	602	738	802	942
		oz	2.9	3.3	4.8	5.4	6.6	7.8	9.1	12	16.4	20.1	21.2	26	28	33.2
	INJECTION PRESSURE	MPa	200	175	193	173	220	190	243	184	200	167	196	160	219	187
	SCREW SPEED	g/s	53	60	88	100	117	130	124	157	210	254	281	335	272	319
	SCREW SPEED	r/min	0~220		0~220		0~200		0~200		0~200		0~200		0~200
	PLASTICIZING CAPACITY	g/s	8.2	9.2	12.1	13	12.9	15	13.6	18.6	24.1	30.8	31.3	37.4	35.7	40
clamping part	CLAMPING FORCE	kN	500		900		1300		1700		2100		2500		3000
	OPEN STROKE	mm	420		480		510		660		720		770		820
	SPACE BETWEET TIE BARS(WXH)	mm	330 x 330		380 x 380		420 x 420		480 x 480		540 x 540		600 x 600		690 x 690
	MOULD THICKNESS	mm	150~570		180~660		200~710		220~880		260~980		280~1050		350~1170
	EJECTOR FORCE	kN	25		30		40		50		60		70		85
	EJECTOR STROKE	mm	80		100		130		180		200		200		230
	EJECTOR NUMBER	n	1		5		5		5		5		9		13
others	HEATER POWER	kW	6		7.1		7.7		9.7		15		21.7		26
	PUMP MOTOR POWER	kW	11		15		18.5		18.5		22		30		37
	MAX PUMP PRESSURE	MPa	16		16		16		16		16		16		16
	MACHINE DIMENSION(LxWxH)	Mm	3.7 X 1.1 X 1.5		4.2 X 1.2 X 1.7		4.62 X 1.3 X 1.7		5.42X1.48X1.72		6.0 X 1.47X 1.83		6.42X1.68X2.0		7.0X2.0X2.3
	MACHINE WEIGHT	T	3		3.8		4.5		6		7.2		9.2		11.3
	Oil Tank Capacity	cm³	300		350		400		500		600		700		900

About us Changshengda Machinery (Zhejiang) Co. Ltd. (CSD) was established in 1992 with a registered capital of $5.2 million USD from Australian sole-ownership enterprises, and boasts a 72, 000 square meter factory zone. The company specializes in research and development in environmental protection, high-precision energy saving injection molding machines for medical and food industry, PET two stage automatic injection stretch blow molding machines, automatic extrusion blow molding machines and various types of plastic moulds and other hi-tech products. Its produce a wide range of goods such as food and beverages packing, plastic goods, pharmaceuticals packing, cleaning products, auto parts, toiletries, home appliances, construction materials, electronics, and so on. CSD's products achieved exceptional sales in South East Asia, the Americas, Eastern Europe, the Middle East, Europe and Africa. Currently the company is working in conjunction with ten of China's most famous brands. CSD's products have gained recognition both inside and outside China as a highly precise, energy-efficient and incredibly streamlined manufacturing company. CSD boasts a standardized and streamlined production and operations system which has received ISO9001 quality authentication. The company has also been giving the following honorary titles: "Provincial Hi-tech Enterprise R&D Centre", "Zhejiang Province Hi-tech Enterprise", "Zhejiang patent demonstration enterprise", among others. CSD's business ethic primarily focuses on three aspects - one, acting in good faith at all times; Two, making science and technology a priority; And three, thriving on producing superior quality products. The company makes use of advanced design concepts, sophisticated processing equipment and incredibly precise manufacturing methods to meet the needs of high-end clients both inside and outside China. CSD's products are continuously being innovated in a bib to ensure product quality and secure a reputable corporate image. The company also promotes the service commitment of one station service. The establishment of CSD after-sales centers all around the world not only demonstrates the company's dedication to thorough after-sales support, but also shows a commitment to providing excellent goods at reasonable prices to both new and existing clients. CSD's employees are driven towards pluralism, standardization and the industrialized development of new technologies, and the company is committed to being an industry leader in plastic goods manufacturing.

---
