US$13,500.00-15,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Worktable Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Certification
GS, CE, ISO 9001
T Slots (N*W*D)
3*18*90mm
Transport Package
Wood Packaging
Specification
2522*2265*2432
Packaging & Delivery
Package Size
2522.00cm * 2265.00cm * 2432.00cm
Package Gross Weight
5000.000kg
Product Description
Product Description

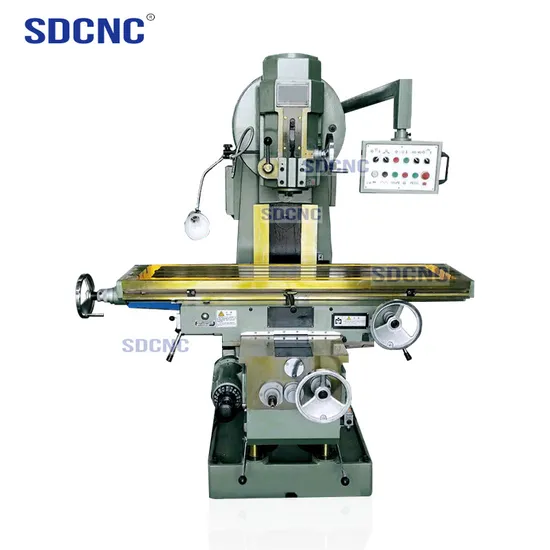

1. Model X5042 is an all-purpose milling machine. It is suted for machining various parts with face milling cutters, cylindrical cutters,
metal slotting saws, end mills, etc. Working table andslide ways and adopted puality cast hardened ensure high accuracy.
2. It can be equipped with digital dispay device.
3. Model X5042A adopts ball screws in three travels(x\y\z). SPECIFICATIONS
| Table size | mm | 420×1800 |
| T slots (N×W×D) | mm | 3×18×90 |
| Longitudinal travel X | mm | 1200/1180 |
| Cross travel Y | mm | 360/350 |
| Vertical travel Z | mm | 460/450 |
| Feed speed steps | | 18 |
| Feed speed ranges: Longitudinal X | mm/min | 22~ 1100 |
| Cross Y | mm/min | 22-1100 |
| Vertical Z | mm/min | 8.3~ 410 |
| Rapid feed ranges: Longitudinal X | mm/min | 2400 |
| Cross Y | mm/min | 2400 |
| Vertical Z | mm/min | 900 |
| Distance between spindle center to vertical guide way | mm | 450 |
| Distance between table center to column | mm | 275~635 |
| Spindle hole taper | | 7:24 /50# |
| Diameter of spindle hole | mm | φ29 |
| Arbor diameter | mm | φ32, φ50 |
| Spindle speed steps | | 18 |
| Distance from spindle end to table | mm | 60~520 |
| Quill travel | mm | 85 |
| Spindle speed ranges | r/min | 30~1500 |
| Max. rotary angle of vertical milling head | | ±45º |
| Feed motor power | kW | 3 |
| Main motor power | kW | 11 |
| Overall size | mm | 2522×2265×2432 |
| Net weight | Kg | 5000 |
>>
