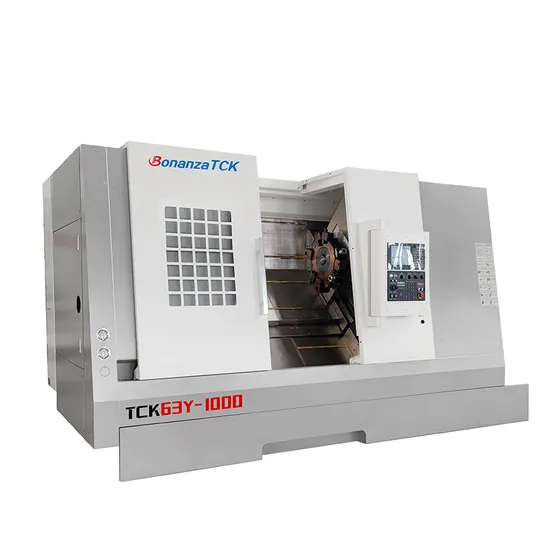

CNC Lathe Living Tools Tck63y-1000 Precision Slant Bed Type Turning Milling Center

Product Description

Product Description

Project			Units	Specifications		Remarks
Maximum turning diameter on bed			mm	720
Maximum cutting length			mm	1000
Maximum cutting diameter			mm	480		12 station Y axis (cutter head opposite side diameter 380, cutter tower center height 215)
Standard cutting diameter			mm	360
Maximum turning diameter on a skateboard			mm	420
Spindle end type and code				A2-8		Motorized spindle
Main shaft hole diameter			mm	85
Maximum pass bar diameter			mm	75
Single spindle headstock	Maximum spindle speed / Maximum spindle output torque		r/min/Nm	3000/283
Main motor Output power	30 minutes/continuo us		kW	37
Standard Chuck	Chuck diameter		inch	10
X-axis fast shift speed			m/min	12
Z-axis fast shift speed			m/min	16
X-axis stroke			mm	300
Z-axis stroke			mm	1020
Y-axis stroke			mm	150 / + 75		Hard rail
Standard knife holder form				Horizontal 12 station servo

FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,
Vertical Machining Center ,Lathe Machines and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7: What about your warranty?
A: Warranty is five year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
8:How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems

---
