Product Details
Product Description
Product Description

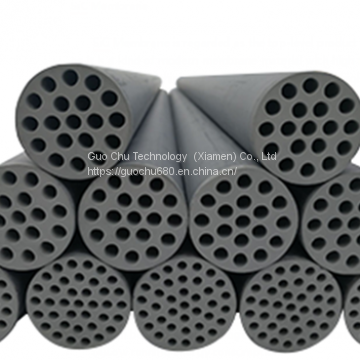

SiC Membrane is regarded as the top-level product in the field of inorganic membrane as it is a kind of modern membrane material with high flux, high tolerance in all PH range, high hardness, high abrasion resistance, and high temperature resistance. These advantages can effectively decrease the operating cost of Membrane Modules to make the products with high cost perfermance. The SiC Membrane can effectively separate Gas & Solid, Liquid & Solid, Liquid & Liquid in extremely tough conditions. SiC Membrane is already get used in the feild of purification of drinking water; the separation of soild, heavy metal ions, bacteria and salinity in waste water; the separation of raw sugar and protein; the pre-processing of reverse osmosis purified water; the water processing of oil and gas exploitation. The separation technique of SiC Membrane with these great advantages will not only be widely used in many fields, but will be also recognized and accepted by more and more people.
Product Advantages:
(1)Membrane modules easily installed, small covering area.
(2)Membrane with best hydrophilia and high flux.
(3)Can be used in all PH range with high abrasion resistance.
(4)Low running energy consumption.
(5)Original flux easily recovered after recoiled.
(6)High hardness and high abrasion resistance.
End Face
|
|
|
|
|
|
Molecular Weight Cut Off
| ≥40kD
|
Membrane Tube Outside Diameter（mm）
| 25
| 30
| 30
| 40
| 40
|
Channel Diameter（mm）
| 3.5
| 6
| 4
| 6
| 4
|
No.of Channel
| 19
| 7
| 19
| 19
| 37
|
1016mm Membrane Area（m²）
| 0.23
| 0.12
| 0.24
| 0.38
| 0.47
|
1200mm Membrane Area（m²）
| 0.27
| 0.14
| 0.28
| 0.41
| 0.55
|
Length of Membrane Tube（mm）
| 100-1200
|
Membrane Hole Diameters
| 0.04μm、0.1μm、0.5μm、1μm、3μm
|
The Application Fields of SiC Membrane
Oil-field Waste Water
SiC Membrane has great advantages in the field of oily waste water treatment because of its excellent mechanical property, chemical property, hydrophilia & lipophobicity, stable operation, high quality out-put water, no secondary pollution, high flux, easily washed, long life-span, etc.
Industrial Waste Water
Industrial waste water mainly including oil waste water, textile waste water, heavy metal waste water, waste water from chemical industry and drugs manufacture. SiC Membrane has excellent mechanical strength, good acid & alkali resistance and chemical stability to make sure the separation with high efficiency, low energy consumption and no secondary pollution.
Flu Gas Treatment in High Temperature
SiC Membrane has extremely high thermal stability and chemical stability to make sure the high efficiency of the flu gas treatment, best dust remove effect and working life.
PM2.5 Treatment
Even though PM2.5 has characteristics of small particle size, Strong adsorption capacity, long transmission distance, horrible for the environment, SiC Ceramic Membrane can treat PM2.5 in a high efficient way because of its narrow pole distribution, excellent mechanical strength and high porosity.
Field Contains HF
SiC has great prospect in the field of HF because it has extremely strong acid and alkali resistance and can resistant strong corrosive hydrofluoric acid.
Drinking Water
When dealing with drinking water, SiC Membrane can remove particulate matters, microorganism and part of macro-molecules organics benefit from its good
hydrophilicity, high porosity and narrow hole distribution. If take use
of the SiC Membrane with smallest hole, it also can remove
microorganism, iron rust and helminth.
