CDS Sensor 5mm Ldr Photoresistor Sensor Photosensitive Resistor Light Sensor Photoresistor Sensor Light Sensor Light Control Mj5516 Mj5517 Mj5528 Mj5537

Product Description

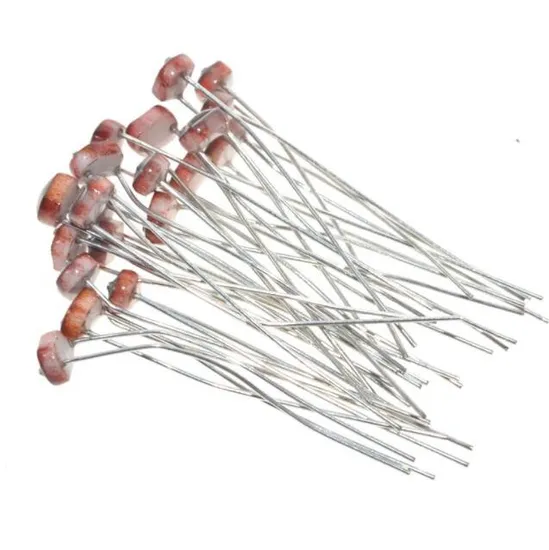

Factory Price 5mm CDS Photoresistor Sensor

Specification

Item	Photoresistor Sensor
Model	MJ5516
Diameter	5mm
Resistance	0.01Ohm-100K Ohm
Resistance Tolerance	-/+1%
Max.Voltage	150VDC
Max. Power Consurrption	100 MW
Operating Temperature	-30-+70 degree
Spec Trum Peak Value	540 nm
Thickless	1.8-/+0.2mm

Introduction
Photoresistor is a resistor which made of semi-conductor material, and the conductance changes with luminance variation. The photoresistor can be manufactured with different figures and illuminate area based on this characteristic.
There are 3 series of product, the expory resin seal, the metal shell seal and the plexinglass seal with Ф3, Ф4, Ф5, Ф6.5, Ф7, Ф11, Ф12, Ф20, Ф25 and other 13 kinds of specifications of more than 100 types of photoresistor products.
Features
1.Coated with epoxy
2.Good Reliability
3.High Sensitivity
4.Small Volume
5.Fast Response
6.Good Spectrum Characteristic
7. Low cost
8. eco-friendly
Applications
- Camera Automation
- Indoor Sunlight Control
- Industrial Control
- Optical Lamp
- Optical Control Music IC
- Optical Control Switch
- Photoelectric Control
- Annunciator
- Electronic toy
- Electronic Detector
-Switch
-Light control
-Light control lamp
-Photoelectric control
-Camera automatic photometry
-Annunciator
Technical parameter for 5mm photocell sensor seriers

Diameter	Modle	Max Voltage (VDC)	Max Power (mw)	Environmental Temperature (degree)	Spectrum Peak Value (nm)	Light Resistance 10Lux(k Ohm)	Dark Resistance (Mohm)	r 100/10
φ5 series	MJ5516	150	90	-30~+70°C	540	5-10	0.6	0.5
	MJ5517	150	90	-30~+70°C	540	10-20	1	0.6
	MJ5528	150	90	-30~+70°C	540	20-30	2	0.6
	MJ5537	150	90	-30~+70°C	540	30-50	3	0.7
	MJ5539	150	90	-30~+70°C	540	50-100	5	0.8
	MJ5549	150	90	-30~+70°C	540	100-200	8	0.9
	MJ5604	150	90	-30~+70°C	540	4-7	0.5	0.5
	MJ5616	150	90	-30~+70°C	540	5-10	0.8	0.6
	MJ5617	150	90	-30~+70°C	540	10-20	2	0.6
	MJ5628	150	90	-30~+70°C	540	20-30	3	0.7
	MJ5637	150	90	-30~+70°C	540	30-50	4	0.8
	MJ5639	150	90	-30~+70°C	540	50-100	8	0.9
	MJ5649	150	90	-30~+70°C	540	100-200	15	0.95

More details could contact us:)
