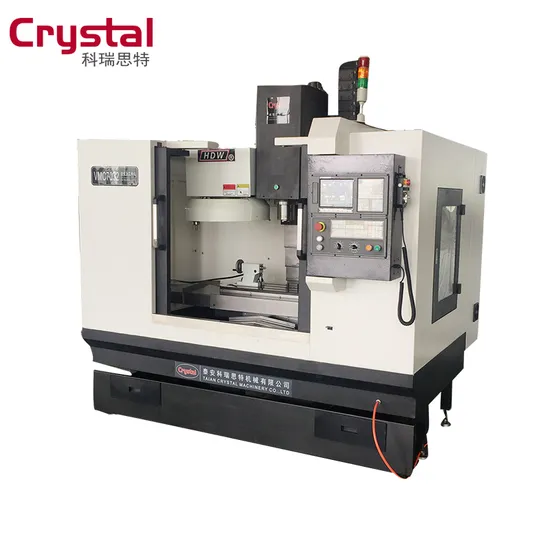

Small Machine Center 3 Axis CNC Milling Machine (VMC7032)

US$22,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
VMC7032
Structure
Dedicated
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Place of Origin
China
Machine Type
CNC Milling Machine
Material
Cast Iron
Processing Type
Metal
X,Y,Z Motor Type
Servo Motor
Warranty
One Year
Power Supply
Three Phase 380V/50Hz
Transport Package
Wooden Case
Specification
CE, SGS
Trademark
Crystal
Origin
China
HS Code
8458110090
Production Capacity
25 Sets/Month

Product Description

VMC7032 CNC Vertical Milling Machine
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping and boring etc.
Features:
1.Taiwan BT40 Spindle
2.Taiwan ball screw and locking nut
3.Umbrella type tool Magazine, 12 tools
4.Fully-guarded type machine
5.KND system ( Siemens and FANUC control are optional)
6.self-lubrication, coolant system, lighting system
Specifications:
Specifications
Unit
VMC7032
Table Size (L*W)
mm
800×320
Travel of x,y,z axis
mm
610/320/400
Max, table load
kg
400
T-slot Size
mm
3-14-100
Center distance
mm
100
Spindle taper
--
BT40
Spindle center to Column guide distance
mm
376
Spindle end face to table distance
mm
130-530
Max speed
rpm
8000
Spindle motor power
KW
3.7/5.5
Spindle drive
--
Belt transmission
Positioning accuracy
mm
0.015
Repeat Positioning accuracy
mm
0.0075
Rapid feed of X/Y/Z
mm/min
1000
Cutting feed of X/Y/Z
mm/min
6000
Tool Magazine Capacity
tools
12
Max. Tool size
mm
100
Max. Tool weight
kg
8
Machine Weight
Kg
3000
Dimension
mm
2280*1760*2200
Power
--
3 phase 380V,

VMC7032 Optional Configurations:
1. System: KND2000M, FANUC, Siemens etc.
2. Spindle speed: 10000rpm
3. Fourth axis with 125°dividing head
4. Fifth axis
5. 16 pieces arm type ATC
