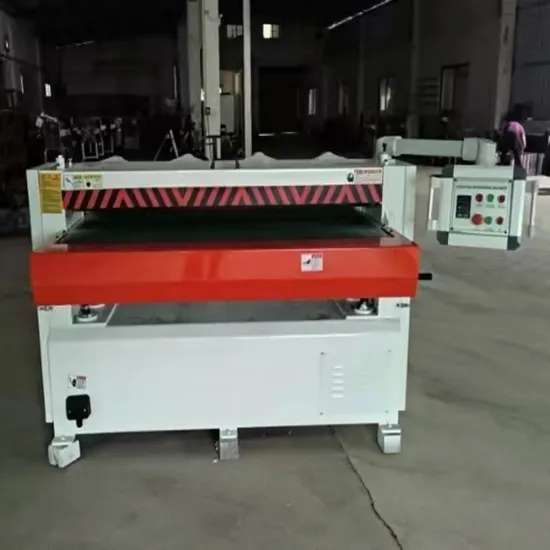

1300/1600/2000 Heavy Duty Single Side Thicknesser Double Side Planer Woodworking Machine

Product Description

Product Description
Single/Double Side Heavy Duty Thicknesser Planer

Planing width*Thickness	2000MM Width 5-180MM Thickness
Column	4
Main Motor KW	18.5KW 380V
Feeding motor KW	1.5KW Speed Adjustable
Up/down	Electric Without Auto Position
Length*Width*Height	1600*2600*1560MM

Detailed Photos
Related Machines
Four Side Planer

Max.working width	400mm
Max.working thickness	20-120mm
Max.planing depth	5mm/3mm/5mm/5mm
Arbor speed	8000r/min
Arbor motor power	5.5KW 380V
L&R spindle speed	7000r/min
L&R spindle motor	3KW/3KW
Feeding speed	9.2m/min/7.5m/min

Double Side Planer Thicknesser

Model	204	206
Max.planing width	400mm	600mm
Max.press thickness	130mm	130mm
pressure gauge	5mm	5mm
Max.cutting length	200mm	200mm
Max.cut surface knife	4mm	4mm
Bottom knife cutting quantity	2mm	2mm
Motor power	5.5KW 380V	4KW*2 380V

Single Side Thickness Planer

Model	104	106
Max .planning width	430mm	630mm
Max .pressing thickness	200mm	200mm
Min. pressing thickness	5mm	5mm
Min .planing depth	5mm	5mm
Spindle speed	5600r /min	5600r /min
Min .planing length	200mm	200mm
Feeding speed	9.10m /min	9.10m /min
Motor power	4kw /380v	5.5kw /380v
Overall Dimensions	900*930*1300mm	900*1130*1300mm

Belt Feeding Single Side Planer

Model	104A
Max .planning width	430mm
Max .pressing thickness	200mm
Min. pressing thickness	5mm
Min .planing depth	5mm
Spindle speed	5600r /min
Min .planing length	200mm
Feeding speed	9.10m /min
Motor power	3kw /380v

4023 Four side moulder

Number of spindles	4
Processing width	20-230mm
Processing thickness	10-125mm
Feeding speed	5-20m/min
Feeding power	2.2kw
Bottom knife motor power	4kw,
Power of the left and right spindles	5.5kw, 5.5kw
Total weight	2500kg
Upper knife motor power	7.5kw
Cross beam lifting and lowering power	0.75kw
Total power	25.45kw
Air pressure	0.3-0.4mpa

6023 Four side moulder

Min processing length(continuously feeding)	500mm
planing width 120MM	20-230mm
Planing thickness	10-150mm
Feeding speed	5-30m/min
Max Up/Down (Front table)	5mm
Max Moving Amount (Front table guider)	5mm
Feeding Wheel Diameter	140MM
Spindle speed	6000RPM
Spindle Movement(Front Bottom 40mm)	10MM
Vertical Spindle Movement(Left/Right 40MM)	30MM
Spindle Movement(Top 40MM)	20mm
Knife Diameter(Top spindle)	145MM
Knife Diameter (Front Bottom)	120MM
Knife Diameter (Left/right Vertical)	145MM
Motor Power (First Top Spindle)	11KW
Motor Power(First Bottom Spindle)	7.5KW
Motor Power(Left Vertical Spindle)	7.5KW
Motor Power(Right Vertical Spindle)	7.5KW
Motor Power(Second Top Spindle)	11KW
Motor Power(Second Bottom Spindle)	11KW
Feeding power	5.5kw
UP/down motor	0.75KW
Total power	61.75kw
Air pressure	0.25-0.3mpa
Pressure Air Demand	0.1M3/Min

Company Profile
Specialize in research & development, production, sales of sawmills and the relevant fittings SINCE 1988
We have serves 11,000 enterprises and our products have been exported to over 60 countries in the world.
Our Planer including:
Single Side Woodworking Thicknesser Planer
Double Side Woodworking Thicknesser Planer
Four Side Woodworking Thicknesser Planer
Heavy Duty Woodworking Thicknesser Planer
Automatic Feeding Woodworking Thicknesser Planer
High Speed Woodworking Thicknesser Planer
Sawmill & Kilns & Pallet & Biomass & Forestry & Recycling
Sincerely welcome worldwide distributors to join us!

---
