Fully Automatic Computer Plastic Bag Making Machine for T-Shirt, Vest, Shopping, Patch, Flower, Chicken, Flat, Garbage Bag

US$9,000.00-30,000.00 1 Set (MOQ)

Basic Info.

Model NO.
GBD-E 600-700-800
Lines
2
Voltage
220V
Seals Mode
Trilateral Seals
Speed
Low
Continuous-Rolled
No
Sealing & Cutting
Heat-Sealing Heat-Cutting
Layer
Double
Machine Type
Bag Forming Machine
Computerized
Computerized
Type
Plastic Bag Making Machine
Machine Name
Bag Making Machine
Working Speed
120PCS to 150PCS
Control Motor
Servo Motor
Feeding Material
Four Roller Film
Max Bag Width
500mm
Transport Package
as required
Specification
CQC, ISO9001, CE, SGS
Trademark
NuoSheng
Origin
CHINA
HS Code
84778000
Production Capacity
15sets

Product Description

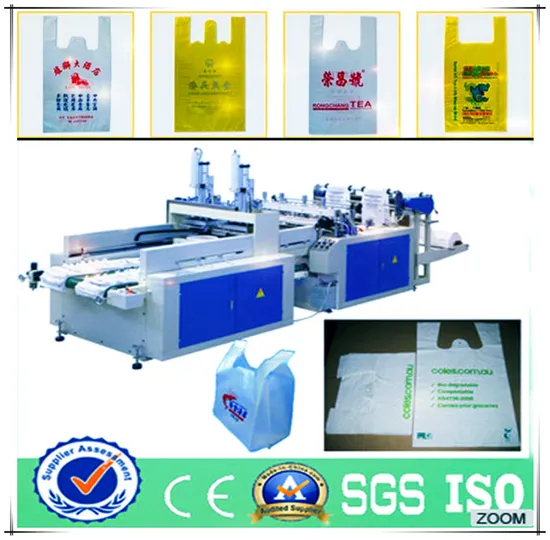

T-SHIRT BAG MAKING MACHINE Specification:
The newly designed super high-speed T-shirt bag making machine, is specially designed for making T-shirt bags. It has two lines or three lines high-speed producing and the best technology of servo motor driving. (No double photocells tracking design for three lines. )
Features:
1. Active type of unwinding tension, fully automatic control.
2. Two lines or three lines temperature controll independently.
3. Turnover sealing knife, humanized design.
4. The whole set of bags has design of swaying, no paste between two bags mouth.
5. Fully automatic tacking of whole set and the smooth & nail-stack design.
Optional:
1. Single sheet heat slitting and edge folding device.
2. Bag folding device.
Main Technology Parameter
Model GBDE-600 GBDE-700
Max. Bag-making width 150-500MM 180-600MM
Max. Bag-making length 300-650 300-650
Bag-making thickness 0.005-0.04MM 0.005-0.04MM
Bag-making speed 5-100pcs/min×4 5-100pcs/min×4
Air pressure 5kg/cm2 5kg/cm2
Total power 5kw 5kw
Weight of machine 700kg 700kg
Overall dimensions(L×W×H) 3200×1100× 1600mm 5200×1300× 1800mm
