Xiong Qiu High Quality High Speed ABA 3 2 Layer Mini HDPE LDPE PE Blown Film Extruder Agriculture Polyethylene Plastic Film Blowing Machine

US$25,000.00-30,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
FM2-800S2
Maximum Folding Width of Film
1500mm
Screw Diameter
75mm
Automation
Automatic
Computerized
Computerized
Machine Weight
8T
Certification
CE, ISO9001:2008
Type 800mm
L*W*H: 5m * 2.8m * 4.7m
Voltage
380V 50Hz 3phase
Die Diameter
80mm
Air Ring Diameter
180mm
Color
as Request
Max.Output
70kg/H
Warranty
1 Year
After-Sales Service
Engineers Available to Service
L/D
30:1
Film Thickness
0.02-0.2mm
Transport Package
Plastic Film for Container Shipment
Specification
ABA 2 layers
Trademark
Xiongqiu Plastic Machinery Co., Ltd.
Origin
Foshan, Guangdong Province
HS Code
8477300000

Product Description

Xiong qiu high quality High Speed ABA 3 2 Layer Mini HDPE LDPE PE Blown Film Extruder Agriculture Polyethylene Plastic Film Blowing Machine
Model FM-800 FM-1100 FM-1300 FM-1700 FM-1800 FM-2000
suitable material LDPE / LLDPE / HDPE
thickness 0.02---0.20mm
film width 750mm 1000mm 1200mm 1500mm 1700mm 2000m
max output 65kgs/hr 85kgs/hr 125kgs/hr 150kgs/hr 175kgs/hr 250kgs/hr

Extruder
screw diameter Φ45mm*2 Φ50mm*2 Φ55mm*2 Φ65mm*2 Φ70mm*2 Φ75mm*2
L/D rate 30:1
temp. controller 10 zone 10 zone 10 zone 12 zone 12 zone 13 zone
barrel cooling 120w*4 120w*4 120w*4 120w*4 250w*6 250w*6
driving motor 11kw*2 15kw*2 18.5kw*2 22kw*2 30kw*2 30kw*2

Die head
die diameter Φ180mm Φ250mm Φ250mm Φ350mm Φ450mm Φ630mm
air ring diameter Φ280mm Φ350mm Φ350mm Φ450mm Φ550mm Φ900mm
die structrue Spiral mandrel die chrome plated surface 40Cr
cooling fan 1.5kw 1.5kw 2.2kw 3kw 4kw 4kw

Take up part
take up width 800mm 1100mm 1300mm 1700mm 1800mm 2200mm
effective width 700mm 1000mm 1200mm 1600mm 1700mm 2100mm
take up motor 1.5kw 1.5kw 1.5kw 2.2kw 2.2kw 3.7kw

Winder
winder width 800mm 1100mm 1300mm 1700mm 1800mm 2200mm
effective width 700mm 1000mm 1200mm 1600mm 1700mm 2100mm
winder motor 30kg 30kg 50kg 50kg 80kg 100kg
optional equipment auto-loader, film surface treater, air compressor,fast change net, double-center rewinder/auto rewinder, flat winder with row roller, rotary die head and double-wind air ring.

2 engine ABA film blowing machine is widely used in componud film, insulated film and all kinds of agricultural film. Such thin film has good separation which is able to meet the quality requirements of following packaging and printing machines for films.

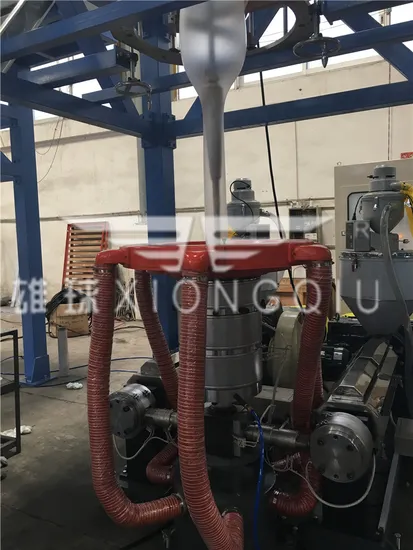

Pictures for reference:
