Product Description
Product Description
Product Description

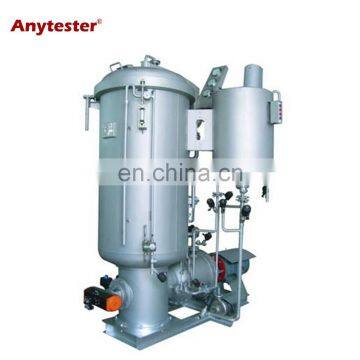

HY0241B Series HTHP bobbin Yarn Dyeing Machine is used for dyeing and bleaching all kinds of bobbin yarn with the material of cotton, polyester, nylon, wool, hemp and blended yarns, etc.
Feature
1. It is widely used for various sample with different configurations
2. The main parts are imported from Europe, Taiwan, Hong Kong etc.
3. Stainless steel construction with bead blasting surface treatment to make the machine can make the machine can stand high temperature and high pressure
4. Inner surface of cylinder adopts acid etching surface treatment to protect cylinder against dyes.
5. The machine adopt PLC to control heating, cooling and constant temperature and make the dyeing process programmable
6. This machine are equipped with automatic water supplying system to save labor.
7. Electrical cabinet adopt stainless steel cabinet
8. Electrical components adopt Siemens, Omron, etc.
9. Dosing/discharge call signal & Sampling call signal.
10. Savings in power and steam consumption by 15-20%
11. Savings in power and steam consumption by 15-20%
12. High-Temperature Drain
13. Overflow Rinse
14. Dyestuff dose signal
15. Flow reversing control
16. Dosing tank- water fill, water drain, heating, and stirring controls
17. Stock tank- water fill, water drain, heating, and stirring controls(Optional)
18. Program end call signal
Specification
Model
| HY241B-25
HTHP bobbin Yarn Dyeing Machine
| HY0241B-50
HTHP bobbin Yarn Dyeing Machine
| HY0241B-100
HTHP bobbin Yarn Dyeing Machine
|
Capacity
| 25kg
| 50kg
| 100kg
|
Diameter of main tank
| Φ430
| Φ600
| Φ750
|
Yarn type
| Cotton, Polyester, Acrylic, Wool, T/C, Blends etc.
|
Low liquor ratio
| 1:5-6
|
Max working temperature
| 140℃
|
Max working pressure
| 0.45Mpa
|
Heating time
| approx 30 min for temp rise 20°C -130°C(at steam pressure of 0.70 Mpa)
|
Cooling time
| approx 20 min for 130°C-80°C (at cooling water pressure of 0.3Mpa
|
Power
| 7.5KW
| 11 KW
| 15 KW
|
>>
