RFID Cabinet Lock 70kg Magnetic

Product Description

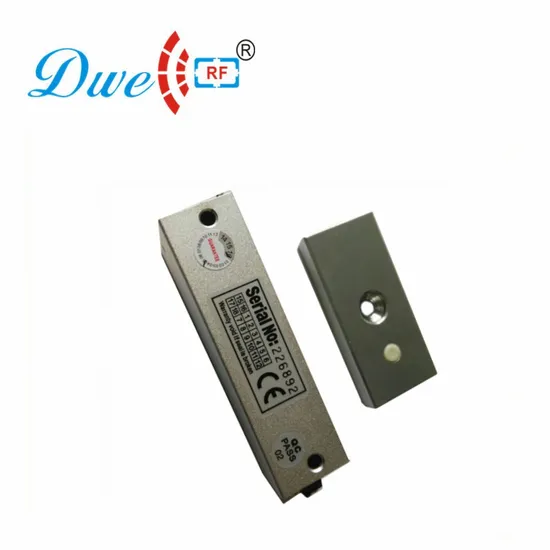

70KG Single Door Magnetic Mini Lock with Signal Output (120Lbs)


Product Description
1) Lock Size: 90Lx33Wx19H(mm)
2) Armature plate: 90Lx33Wx9.8H(mm)
3) Holding Force: 70kg(120Lbs)
4) Voltage: 12VDC
5) Current Draw: 12V/300mA 24V/150mA
6) Suitable for: File Cabinet ,Display Cabinet
7) Surface Temp: ≤+20 degree
8) Operating Temp: 10~+55 degree(14-131F)
9) Suitable Humidity: 0~90%(non-condensing)
10) Finishes for Shell: Anodized aluminum
11) Finishes for Magnetic: Zinc
12) Finishes for Armature: Zinc
13) Weight: 0.5kg
14) Standard Packing: 60pcs

features
1) Collinear Load Test 70kg,120pounds
2) MOV Provides Reverse Current Protection
3) Anti-Residual Magneism Designed
4) High Strength Material,Anodized Aluminum Housing
5) Design with no Mechanical Bolt
6) Increase the holding Force,Dual Insulative Hosing
7) CE Certificate by European Union,MA Certificate by China Public Security Office


Packing list

1pcs per box, 0.5kg
Standard Packing: 60pcs per carton


Product Picture


Certifications
Why choose us ?

1) High Quality Control
2) High Reputation
3) Professional Sales Team
4) 24 Hours and on time service
5) Competitive Price
6) On time delivery
