Electronics Factory PA/ABS/PBT/PC System PA 66 Nylon Filled Resin with Carbon Fiber PA66 GF33 Building Chemical Raw Material Auto Parts Resin Plastic Products

Product Description

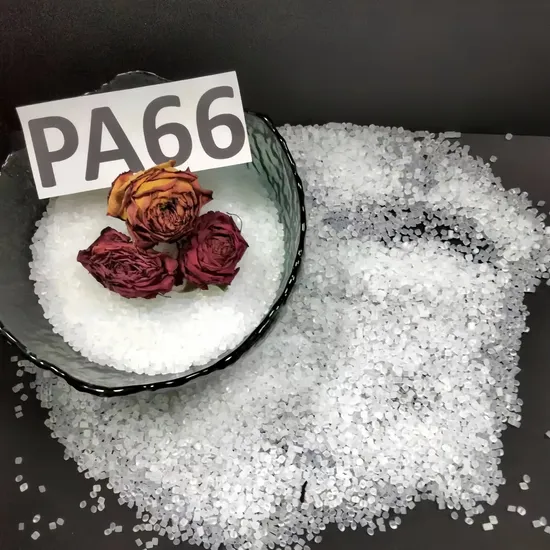

PA66GF33	A105GH
Product Description	Applications
33% glass fiber reinforced PA66	Injection molding
Good mechanical properties balance	Excellent heat stability

Properties	Test Method	Test Condition	Unit	Typical Values(dry)
Physical properties
Specific Gravity	ISO 1183	23°C	g/cm³	1.39
Ash	ISO 3451	800°C,30min	%	33
Mechanical properties
Tensile Strength	ISO 527	5mm/min	MPa	11000
Tensile Modulus	ISO 527	1mm/min	MPa	200
Elongation at Break	ISO 527	5mm/min	%	3
Flexural Strength	ISO 178	2mm/min	MPa	290
Flexural Modulus	ISO 178	2mm/min	MPa	9500
Unotched Charpy Impact Strength	ISO 179-1/1eU	23°C	kJ/m2	80
Notched Charpy Impact Strength	ISO 179-1/1eA	23°C	kJ/m2	11
Thermal properties
Heat deflection temperature	ISO 75	1.80MPa	°C	247
Melt Temperature	ISO 11357	DSC	°C	262
Other properties
Mold Shrinkage	internal test method	flow direction	%	0.10-0.30
		cross flow direction	%	0.90-1.20
Flammability	ISO 3795	-	mm/min	24
Note: The data above is typical value for reference, not guarantee value. The data will vary with tool design such as gate type , gate location, gate number, injection molding process and part thickness. The data will vary with different color as well. Prior to use the material, please consult with Suzhou Shituo New Material Co., Ltd.

Processing Conditions		Range
Melt Temperature		280-300°C
Barrel Temperature	Rear	280-290°C
	Center	285-295°C
	Front	290-300°C
Mold Temperature		80-100°C
Pre-Dry needed		100-110°C, 4-6h dehumidified dryer
Note: The above process condition is only for reference. The actual process should be adjusted according to different type of machine, mold design and product design.

Why choose us
More Related Products
Company Profile
Suzhou Shituo New Material Co., Ltd. The company was established in 1998; Registered capital of 100 million RMB, 30 minutes from Shanghai high-speed rail; 1 hour from Nanjing,is a High-Tech Enterprise specializing in the production and R&D of technique compounds based on PA6, PA66, PP, PBT, PC, ABS, PC/ABS, HIPS, AES, PVC, TPE, disposable formwork (for lightweight fill applications) and reusable formwork (for modular applications). With two advanced high-speed twin-screw mixing equipment and one professional sample production line, our annual sales reached 10, 000 tons with actual production capacity reaching up to 15, 000 tons. We also have an independent laboratory with a full range of testing machines and a team of professional engineers. Our company owns ISO9001: 2008 and other quality system certifications, we can also supply the material with RoHS, REACH, and SGS certificates. We are confident to provide high-quality materials which can fully meet different clients′ expectations. Our materials are now widely used in automotive, household appliances, electronic appliances, telecommunications, and other industries.
Quality Inspection Center
Relevant finished product
Packaging & Shipping
FAQ
1. Q: Are you a manufacturer or a trading company?A:We are a company with integration of industry and trade.2. Q: Can you do OEM?A:Yes, we can do OEM products. Engraved your logo on the products and printing on the customized packaging 3. Q:And Logo printing?A:We can print your logo in the products as you required.4. Q:How can I get some samples?A:1, We are honored to offer you samples. New clients need pay for the courier cost, the samples are free for you, this charge will be deducted from the payment for large order.
2,Regarding the courier cost: you can arrange a RPI (remote pick-up) service upon FedEx, UPS, DHL, TNT, etc. to have the samples collected; or inform us your DHL collection account. Then you can pay the freight direct to your local carrier company.5. Q:How does your factory do regarding quality control?A:1) Skillful workers care every details in handling the producing and packing processes.
2) Quality Control Department is specially responsible for quality checking in each process.

---
