Hydraulic Radial Arm Drilling Machine

Product Description

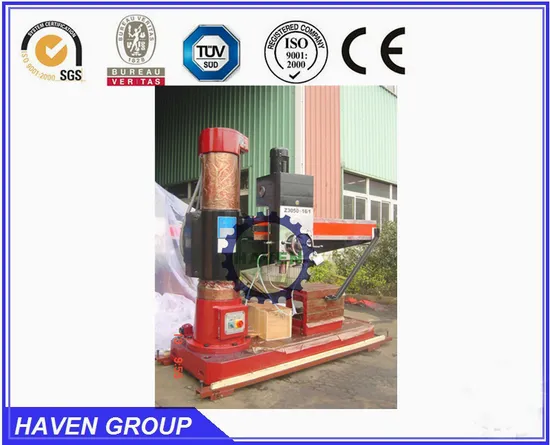

Z3050X16/1 High Quanlity Radial Drilling Machine
Main feature:
With wide range of speed and feed, with manual\power and fine feeds.The feed of machines are very easily engaged and disengaged at any time.With safe and reliable feed safety machine, all
Parts easy operation and change.All controls centralized on the head stock easy operation and change.Clamping for assemblies and speed change of spindle achiered by hydrandic power, cmle is sensitna owet nelile.Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of materia for basic parts.Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability.Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
Main specification:

Model	Z3050*16/1
Max.Drilling capacity(mm)	50
Distance Spindle axis to column generating line(mm)	350-1600
Diameter of column(mm)	350
Spindle taper(mm)	MT5
Distance travel(mm)	315
Spindle speends range(mm)	25-2000
Spindle speeds series	16
Rang of Spindle feeds(mm/r)	0.04-3.2
Spindle feeds	16
Max.Distance nose to working \surface of base (mm)	320-1220
Dimension of worktale(mm)	630*500*500
Overall height(mm)	2400*1000*200
Overall Size	2500*1060*2650
G.W./N.W.(Kg)	4300/3500
Packing dimension(cm)	280*133*302
Power of Main motor	4

---
