Lornet-0836 - Double probing frequency non-linear junction detector

Product Details

Product Description

Product Description
The world only non-linear detector operating simultaneously in two frequency ranges:
800 MHz and 3600 MHz
The non-linear junction detector LORNET-0836 is the indispensable tool for quick and reliable detection of devices containing semiconductor components. It can be used for counter-surveilance search works in premises (covert transmitters identification), as well as for location of explosive devices outdoors. The DPF (double probing frequency) technology with a patent pending antenna system places it truly apart from the competition.
Main competitive advantages:
• Duoble probing frequency operation mode gives significant advantages over single frequency NLJD since it is much better to detect small-sized and high-frequency semiconductor objects at high frequencies whereas the use of low frequencies benefits from improved detection in the wet ground and concrete walls;
• It is possible to operate in one of the frequency ranges and in both of them simultaneously;
• An embedded parabolic antenna with high gain (20 dB at 3600 MHz) enables highly precise detection of semiconductor components from a long distance.
• Laser pinpointing for a space selective object localisation;
• Wide power control range, automatic and manual modes of probing signal level adjustment;
• Possibility to listen to the envelope detector output as well as to the received signal level via a built-in loudspeaker and wireless head phones to evaluate parametric impacts (e.g. knocking) on the suspicious object.
• Low-frequency range (800 MHz) gives opportunity the operate high humidity.
• High frequency range (3600 MHz)gives opportunity to spatially select the semiconductor elements location
• Reliable detection of the SIM-card at a distance of 80 centimeters.
• Compact device, the weight is 1 kg.
• Lornet is equipped with an automatic system of protection against centered jamming by criterion of a minimum noise in the receiver path of the 2nd harmonic.
• Electromagnetic radiation towards the operator is many times less than one setted by the Regulator.
Technical characteristics

Probing signal frequency range	800MHz +/- 3600MHz +/-
The maximum power of the probing signal (peak // average):
Pulse mode	18W//64mW
Pulse mode with small duty cycle (CW)	6W//375mW
Receiver sensitivity, not worse than	-110dBm
The adjustment range of the probing signal power	20dB
The dynamic range of the receiving path	24dB
Battery life at maximum power in a pulse (continuous) mode	2,5h (1,5h)
Device dimensions	31х31х28cm
The full weight of the item in active state	1kg

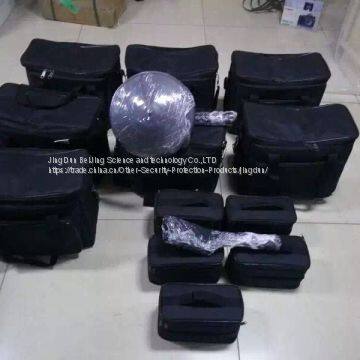

The bag dimensions	44х30х35cm
The full weight of the item within a bag	4.5kg
The operating temperature range	from +5 to +40℃

---
